LinearSinkForce Class Reference

Attractor force. More...

#include <linearSinkForce.h>

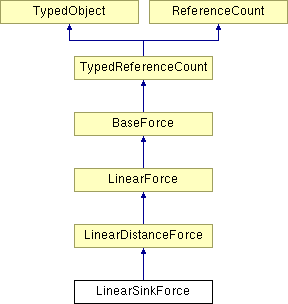

Inheritance diagram for LinearSinkForce:


Public Types
enum	FalloffType { FT_ONE_OVER_R, FT_ONE_OVER_R_SQUARED, FT_ONE_OVER_R_CUBED }
Public Member Functions
	LinearSinkForce (const LPoint3f &p, FalloffType f, float r, float a=1.0f, bool m=true)
	Simple constructor.
	LinearSinkForce (void)
	Simple constructor.
	LinearSinkForce (const LinearSinkForce &copy)
	copy constructor
virtual	~LinearSinkForce (void)
	Simple destructor.
virtual TypeHandle	get_type (void) const
virtual TypeHandle	force_init_type ()
void	set_radius (float r)
	set the radius
void	set_falloff_type (FalloffType ft)
	falloff_type encapsulating wrap
void	set_force_center (const LPoint3f &p)
	set the force center
float	get_radius (void) const
	radius query
FalloffType	get_falloff_type (void) const
	falloff_type query
LPoint3f	get_force_center (void) const
	force_center query
float	get_scalar_term (void) const
	calculate the term based on falloff
void	set_amplitude (const float a)
void	set_mass_dependent (bool m)
float	get_amplitude (void) const
bool	get_mass_dependent (void) const
void	set_vector_masks (bool x, bool y, bool z)
virtual LVector3f	get_vector (const PhysicsObject *po)
virtual bool	is_linear (void) const
bool	get_active (void) const
void	set_active (bool active)
ForceNode *	get_force_node (void) const
int	get_type_index () const
	Returns the internal index number associated with this object's TypeHandle, a unique number for each different type.
bool	is_of_type (TypeHandle handle) const
	Returns true if the current object is or derives from the indicated type.
bool	is_exact_type (TypeHandle handle) const
	Returns true if the current object is the indicated type exactly.
int	get_ref_count () const
	Returns the current reference count.
int	ref () const
	Explicitly increments the reference count.
int	unref () const
	Explicitly decrements the reference count.
void	test_ref_count_integrity () const
	Does some easy checks to make sure that the reference count isn't completely bogus.
Static Public Member Functions
TypeHandle	get_class_type (void)
void	init_type (void)
Private Member Functions
virtual LVector3f	get_child_vector (const PhysicsObject *po)
	virtual force query
virtual LinearForce *	make_copy (void)
	copier
Static Private Attributes
TypeHandle	_type_handle

Detailed Description

Attractor force.

Think black hole.

Definition at line 34 of file linearSinkForce.h.

Member Enumeration Documentation

enum LinearDistanceForce::FalloffType [inherited]

Enumeration values:

FT_ONE_OVER_R

FT_ONE_OVER_R_SQUARED

FT_ONE_OVER_R_CUBED

Definition at line 38 of file linearDistanceForce.h.

Constructor & Destructor Documentation

LinearSinkForce::LinearSinkForce ( const LPoint3f & p,

FalloffType f,

float r,

float a = 1.0f,

bool m = true

)

Simple constructor.

Definition at line 35 of file linearSinkForce.cxx.

LinearSinkForce::LinearSinkForce ( void )

Simple constructor.

Definition at line 49 of file linearSinkForce.cxx.
Referenced by LinearSinkForce().

LinearSinkForce::LinearSinkForce ( const LinearSinkForce & copy )

copy constructor

Definition at line 63 of file linearSinkForce.cxx.
References LinearSinkForce().

LinearSinkForce::~LinearSinkForce ( void ) [virtual]

Simple destructor.

Definition at line 76 of file linearSinkForce.cxx.
References LinearDistanceForce::get_force_center(), PhysicsObject::get_position(), and LinearDistanceForce::get_scalar_term().

Member Function Documentation

virtual TypeHandle LinearSinkForce::force_init_type ( void ) [inline, virtual]

Reimplemented from LinearDistanceForce.
Definition at line 58 of file linearSinkForce.h.

bool BaseForce::get_active ( void ) const [inline, inherited]

Definition at line 51 of file baseForce.I.

float LinearForce::get_amplitude ( void ) const [inline, inherited]

Definition at line 40 of file linearForce.I.
References LinearForce::_mass_dependent, and INLINE.

LVector3f LinearSinkForce::get_child_vector ( const PhysicsObject * po ) [private, virtual]

virtual force query

Implements LinearDistanceForce.
Definition at line 101 of file linearSinkForce.cxx.

TypeHandle LinearSinkForce::get_class_type ( void ) [inline, static]

Reimplemented from LinearDistanceForce.
Definition at line 47 of file linearSinkForce.h.

LinearDistanceForce::FalloffType LinearDistanceForce::get_falloff_type ( void ) const [inline, inherited]

falloff_type query

Definition at line 70 of file linearDistanceForce.I.
References LinearDistanceForce::_force_center, and INLINE.

LPoint3f LinearDistanceForce::get_force_center ( void ) const [inline, inherited]

force_center query

Definition at line 96 of file linearDistanceForce.I.
Referenced by ~LinearSinkForce(), and LinearSourceForce::~LinearSourceForce().

ForceNode * BaseForce::get_force_node ( void ) const [inline, inherited]

Definition at line 29 of file baseForce.I.
References BaseForce::_active, and INLINE.

bool LinearForce::get_mass_dependent ( void ) const [inline, inherited]

Definition at line 51 of file linearForce.I.
References LinearForce::_mass_dependent.

float LinearDistanceForce::get_radius ( void ) const [inline, inherited]

radius query

Definition at line 83 of file linearDistanceForce.I.
References LinearDistanceForce::_falloff, LinearDistanceForce::_radius, LinearDistanceForce::FT_ONE_OVER_R_CUBED, LinearDistanceForce::FT_ONE_OVER_R_SQUARED, and INLINE.

int ReferenceCount::get_ref_count ( ) const [inline, inherited]

Returns the current reference count.

Definition at line 183 of file referenceCount.I.
Referenced by RenderState::determine_bin_index(), RenderEffects::determine_show_bounds(), FontPool::ns_garbage_collect(), TexturePool::ns_garbage_collect(), MaterialPool::ns_get_material(), and TexturePool::ns_release_texture().

float LinearDistanceForce::get_scalar_term ( void ) const [inline, inherited]

calculate the term based on falloff

Definition at line 109 of file linearDistanceForce.I.
Referenced by ~LinearSinkForce(), and LinearSourceForce::~LinearSourceForce().

virtual TypeHandle LinearSinkForce::get_type ( void ) const [inline, virtual]

Reimplemented from LinearDistanceForce.
Definition at line 55 of file linearSinkForce.h.

int TypedObject::get_type_index ( ) const [inline, inherited]

Returns the internal index number associated with this object's TypeHandle, a unique number for each different type.
This is equivalent to get_type().get_index().
Definition at line 71 of file typedObject.I.
References TypeHandle::get_name(), TypedObject::get_type(), and INLINE.

LVector3f LinearForce::get_vector ( const PhysicsObject * po ) [virtual, inherited]

Implements BaseForce.
Definition at line 83 of file linearForce.cxx.

void LinearSinkForce::init_type ( void ) [inline, static]

Reimplemented from LinearDistanceForce.
Definition at line 50 of file linearSinkForce.h.

bool TypedObject::is_exact_type ( TypeHandle handle ) const [inline, inherited]

Returns true if the current object is the indicated type exactly.

Definition at line 101 of file typedObject.I.
Referenced by PT(), and CollisionNode::xform().

bool LinearForce::is_linear ( void ) const [virtual, inherited]

Implements BaseForce.
Definition at line 105 of file linearForce.cxx.

bool TypedObject::is_of_type ( TypeHandle handle ) const [inline, inherited]

Returns true if the current object is or derives from the indicated type.

Definition at line 86 of file typedObject.I.
Referenced by EggMaterialCollection::collapse_equivalent_materials(), EggTextureCollection::collapse_equivalent_textures(), DeferredNodeProperty::compose(), AnimBundleMaker::create_s_channel(), CharacterMaker::create_slider(), ProjectionScreen::cull_callback(), DataNode::define_output(), EggNode::determine_draw_order(), CharacterMaker::egg_to_index(), EggGroupUniquifier::EggGroupUniquifier(), EggPoolUniquifier::EggPoolUniquifier(), EggGroupNode::find_textures(), StaticTextFont::get_glyph(), EggMaterialCollection::insert_materials(), EggTextureCollection::insert_textures(), CharacterJoint::make_copy(), PT(), EggGroupNode::r_flatten_transforms(), EggGroupNode::r_transform_vertices(), EggGroupNode::recompute_polygon_normals(), CollisionLevelState::reserve(), PandaFramework::reset_frame_rate(), PandaFramework::set_texture(), EggGroupNode::steal_children(), and DataGraphTraverser::traverse().

LinearForce * LinearSinkForce::make_copy ( void ) [private, virtual]

copier

Implements LinearDistanceForce.
Definition at line 88 of file linearSinkForce.cxx.

int ReferenceCount::ref ( ) const [inline, inherited]

Explicitly increments the reference count.
User code should avoid using ref() and unref() directly, which can result in missed reference counts. Instead, let a PointerTo object manage the reference counting automatically.
This function is const, even though it changes the object, because generally fiddling with an object's reference count isn't considered part of fiddling with the object. An object might be const in other ways, but we still need to accurately count the number of references to it.
The return value is the new reference count.
Definition at line 225 of file referenceCount.I.
Referenced by ClientDevice::ClientDevice(), EggGroupNode::find_textures(), EggGroupNode::r_apply_texmats(), EggGroupNode::r_flatten_transforms(), and EggGroupNode::reverse_vertex_ordering().

void BaseForce::set_active ( bool active ) [inline, inherited]

Definition at line 40 of file baseForce.I.
References BaseForce::_active, and INLINE.

void LinearForce::set_amplitude ( const float a ) [inline, inherited]

Definition at line 29 of file linearForce.I.
References LinearForce::_amplitude, and INLINE.

void LinearDistanceForce::set_falloff_type ( FalloffType ft ) [inline, inherited]

falloff_type encapsulating wrap

Definition at line 31 of file linearDistanceForce.I.
References LinearDistanceForce::_radius, and INLINE.

void LinearDistanceForce::set_force_center ( const LPoint3f & p ) [inline, inherited]

set the force center

Definition at line 57 of file linearDistanceForce.I.

void LinearForce::set_mass_dependent ( bool m ) [inline, inherited]

Definition at line 62 of file linearForce.I.
References LinearForce::_y_mask, LinearForce::_z_mask, and y.

void LinearDistanceForce::set_radius ( float r ) [inline, inherited]

set the radius

Definition at line 44 of file linearDistanceForce.I.
References LinearDistanceForce::_force_center, and INLINE.

void LinearForce::set_vector_masks ( bool x,

bool y,

bool z

) [inline, inherited]

Definition at line 73 of file linearForce.I.

void ReferenceCount::test_ref_count_integrity ( ) const [inline, inherited]

Does some easy checks to make sure that the reference count isn't completely bogus.

Definition at line 328 of file referenceCount.I.
References INLINE.
Referenced by EggNode::determine_bin(), and ReferenceCount::~ReferenceCount().

int ReferenceCount::unref ( ) const [inline, inherited]

Explicitly decrements the reference count.
Note that the object will not be implicitly deleted by unref() simply because the reference count drops to zero. (Having a member function delete itself is problematic; plus, we don't have a virtual destructor anyway.) However, see the helper function unref_delete().
User code should avoid using ref() and unref() directly, which can result in missed reference counts. Instead, let a PointerTo object manage the reference counting automatically.
This function is const, even though it changes the object, because generally fiddling with an object's reference count isn't considered part of fiddling with the object. An object might be const in other ways, but we still need to accurately count the number of references to it.
The return value is the new reference count.
Definition at line 293 of file referenceCount.I.
References INLINE.
Referenced by RenderState::determine_bin_index(), and RenderEffects::determine_show_bounds().

Member Data Documentation

TypeHandle LinearSinkForce::_type_handle [static, private]

Reimplemented from LinearDistanceForce.
Definition at line 24 of file linearSinkForce.cxx.

The documentation for this class was generated from the following files:

panda/src/physics/linearSinkForce.h
panda/src/physics/linearSinkForce.cxx
