RenderModeAttrib Class Reference

Enables or disables writing to the depth buffer. More...

#include <renderModeAttrib.h>

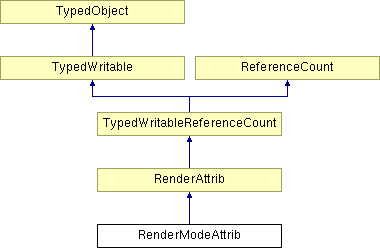

Inheritance diagram for RenderModeAttrib:

RenderAttrib TypedWritableReferenceCount TypedWritable ReferenceCount TypedObject List of all members.

Public Types

enum  Mode { M_filled, M_wireframe }
enum  PandaCompareFunc {
  M_none = 0, M_never, M_less, M_equal,
  M_less_equal, M_greater, M_not_equal, M_greater_equal,
  M_always
}

Public Member Functions

Mode get_mode () const
 Returns the render mode.

float get_line_width () const
 Returns the line width.

virtual void issue (GraphicsStateGuardianBase *gsg) const
 Calls the appropriate method on the indicated GSG to issue the graphics commands appropriate to the given attribute.

virtual void output (ostream &out) const
virtual void write_datagram (BamWriter *manager, Datagram &dg)
 Writes the contents of this object to the datagram for shipping out to a Bam file.

virtual TypeHandle get_type () const
virtual TypeHandle force_init_type ()
ConstPointerTo< RenderAttrib > compose (const RenderAttrib *other) const
ConstPointerTo< RenderAttrib > invert_compose (const RenderAttrib *other) const
ConstPointerTo< RenderAttrib > make_default () const
int compare_to (const RenderAttrib &other) const
 Provides an arbitrary ordering among all unique RenderAttribs, so we can store the essentially different ones in a big set and throw away the rest.

virtual void write (ostream &out, int indent_level) const
virtual void finalize ()
 Method to ensure that any necessary clean up tasks that have to be performed by this object are performed.

virtual int complete_pointers (TypedWritable **p_list, BamReader *manager)
 Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

int get_type_index () const
 Returns the internal index number associated with this object's TypeHandle, a unique number for each different type.

bool is_of_type (TypeHandle handle) const
 Returns true if the current object is or derives from the indicated type.

bool is_exact_type (TypeHandle handle) const
 Returns true if the current object is the indicated type exactly.

int get_ref_count () const
 Returns the current reference count.

int ref () const
 Explicitly increments the reference count.

int unref () const
 Explicitly decrements the reference count.

void test_ref_count_integrity () const
 Does some easy checks to make sure that the reference count isn't completely bogus.


Static Public Member Functions

ConstPointerTo< RenderAttrib > make (Mode mode, float line_width=1.0f)
 Constructs a new RenderModeAttrib object that specifies whether to draw polygons in the normal, filled mode, or wireframe mode, or in some other yet-to-be-defined mode.

void register_with_read_factory ()
 Tells the BamReader how to create objects of type RenderModeAttrib.

TypeHandle get_class_type ()
void init_type ()
TypedWritable * change_this (TypedWritable *old_ptr, BamReader *manager)
 Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired.


Static Public Attributes

TypedWritable *const Null = (TypedWritable*)0L

Protected Member Functions

virtual int compare_to_impl (const RenderAttrib *other) const
 Intended to be overridden by derived RenderModeAttrib types to return a unique number indicating whether this RenderModeAttrib is equivalent to the other one.

virtual RenderAttrib * make_default_impl () const
 Intended to be overridden by derived RenderModeAttrib types to specify what the default property for a RenderModeAttrib of this type should be.

void fillin (DatagramIterator &scan, BamReader *manager)
 This internal function is called by make_from_bam to read in all of the relevant data from the BamFile for the new RenderModeAttrib.

virtual ConstPointerTo< RenderAttrib > compose_impl (const RenderAttrib *other) const
 Intended to be overridden by derived RenderAttrib types to specify how two consecutive RenderAttrib objects of the same type interact.

virtual ConstPointerTo< RenderAttrib > invert_compose_impl (const RenderAttrib *other) const
 Intended to be overridden by derived RenderAttrib types to specify how two consecutive RenderAttrib objects of the same type interact.

void output_comparefunc (ostream &out, PandaCompareFunc fn) const

Static Protected Member Functions

TypedWritable * make_from_bam (const FactoryParams &params)
 This function is called by the BamReader's factory when a new object of type RenderModeAttrib is encountered in the Bam file.

ConstPointerTo< RenderAttrib > return_new (RenderAttrib *attrib)
 This function is used by derived RenderAttrib types to share a common RenderAttrib pointer for all equivalent RenderAttrib objects.

TypedWritable * new_from_bam (RenderAttrib *attrib, BamReader *manager)

Private Member Functions

 RenderModeAttrib (Mode mode, float line_width)
 Use RenderModeAttrib::make() to construct a new RenderModeAttrib object.


Private Attributes

Mode _mode
float _line_width

Static Private Attributes

TypeHandle _type_handle

Detailed Description

Enables or disables writing to the depth buffer.

Definition at line 36 of file renderModeAttrib.h.

Member Enumeration Documentation

enum RenderModeAttrib::Mode


Enumeration values:
M_filled
M_wireframe

Definition at line 38 of file renderModeAttrib.h.

Referenced by RenderModeAttrib().

enum RenderAttrib::PandaCompareFunc [inherited]


Enumeration values:
M_none
M_never
M_less
M_equal
M_less_equal
M_greater
M_not_equal
M_greater_equal
M_always

Definition at line 107 of file renderAttrib.h.

Referenced by AlphaTestAttrib::AlphaTestAttrib(), DepthTestAttrib::DepthTestAttrib(), DXGraphicsStateGuardian8::enable_texturing(), GLGraphicsStateGuardian::issue_tex_matrix(), and GLGraphicsStateGuardian::issue_transform().

Constructor & Destructor Documentation

RenderModeAttrib::RenderModeAttrib (  RenderModeAttrib::Mode  mode,
float  line_width
)  [inline, private]


Use RenderModeAttrib::make() to construct a new RenderModeAttrib object.

Definition at line 34 of file renderModeAttrib.I.

References _mode, INLINE, and Mode.

Member Function Documentation

TypedWritable * RenderAttrib::change_this (  TypedWritable *  old_ptr,
BamReader *  manager
)  [static, inherited]


Called immediately after complete_pointers(), this gives the object a chance to adjust its own pointer if desired.

Most objects don't change pointers after completion, but some need to.

Once this function has been called, the old pointer will no longer be accessed.

Definition at line 362 of file renderAttrib.cxx.

int RenderAttrib::compare_to (  const RenderAttrib &  other  )  const [inline, inherited]


Provides an arbitrary ordering among all unique RenderAttribs, so we can store the essentially different ones in a big set and throw away the rest.

This method is not needed outside of the RenderAttrib class because all equivalent RenderAttrib objects are guaranteed to share the same pointer; thus, a pointer comparison is always sufficient.

Definition at line 125 of file renderAttrib.I.

int RenderModeAttrib::compare_to_impl (  const RenderAttrib *  other  )  const [protected, virtual]


Intended to be overridden by derived RenderModeAttrib types to return a unique number indicating whether this RenderModeAttrib is equivalent to the other one.

This should return 0 if the two RenderModeAttrib objects are equivalent, a number less than zero if this one should be sorted before the other one, and a number greater than zero otherwise.

This will only be called with two RenderModeAttrib objects whose get_type() functions return the same.

Reimplemented from RenderAttrib.

Definition at line 135 of file renderModeAttrib.cxx.

int TypedWritable::complete_pointers (  TypedWritable **  p_list,
BamReader *  manager
)  [virtual, inherited]


Receives an array of pointers, one for each time manager->read_pointer() was called in fillin().

Returns the number of pointers processed.

This is the callback function that is made by the BamReader at some later point, after all of the required pointers have been filled in. It is necessary because there might be forward references in a bam file; when we call read_pointer() in fillin(), the object may not have been read from the file yet, so we do not have a pointer available at that time. Thus, instead of returning a pointer, read_pointer() simply reserves a later callback. This function provides that callback. The calling object is responsible for keeping track of the number of times it called read_pointer() and extracting the same number of pointers out of the supplied vector, and storing them appropriately within the object.

Reimplemented in AnimBundleNode, AnimGroup, PartBundleNode, PartGroup, Character, CharacterJoint, CollisionNode, GeomSprite, PiecewiseCurve, ClipPlaneAttrib, FogAttrib, LensNode, LightAttrib, MaterialAttrib, RenderEffects, RenderState, TextureAttrib, Person, and Child.

Definition at line 94 of file typedWritable.cxx.

Referenced by RenderState::do_invert_compose().

ConstPointerTo< RenderAttrib > RenderAttrib::compose (  const RenderAttrib *  other  )  const [inline, inherited]


Referenced by LightAttrib::get_light(), LightAttrib::get_num_lights(), ClipPlaneAttrib::get_num_planes(), and ClipPlaneAttrib::get_plane().

ConstPointerTo< RenderAttrib > RenderAttrib::compose_impl (  const RenderAttrib *  other  )  const [protected, virtual, inherited]


Intended to be overridden by derived RenderAttrib types to specify how two consecutive RenderAttrib objects of the same type interact.

This should return the result of applying the other RenderAttrib to a node in the scene graph below this RenderAttrib, which was already applied. In most cases, the result is the same as the other RenderAttrib (that is, a subsequent RenderAttrib completely replaces the preceding one). On the other hand, some kinds of RenderAttrib (for instance, ColorTransformAttrib) might combine in meaningful ways.

Reimplemented in ClipPlaneAttrib, ColorScaleAttrib, CullFaceAttrib, DepthOffsetAttrib, LightAttrib, and TexMatrixAttrib.

Definition at line 276 of file renderAttrib.cxx.

void RenderModeAttrib::fillin (  DatagramIterator &  scan,
BamReader *  manager
)  [protected]


This internal function is called by make_from_bam to read in all of the relevant data from the BamFile for the new RenderModeAttrib.

Reimplemented from RenderAttrib.

Definition at line 244 of file renderModeAttrib.cxx.

void RenderAttrib::finalize (  void   )  [virtual, inherited]


Method to ensure that any necessary clean up tasks that have to be performed by this object are performed.

Reimplemented from TypedWritable.

Definition at line 393 of file renderAttrib.cxx.

virtual TypeHandle RenderModeAttrib::force_init_type (  void   )  [inline, virtual]


Reimplemented from RenderAttrib.

Definition at line 87 of file renderModeAttrib.h.

TypeHandle RenderModeAttrib::get_class_type (  void   )  [inline, static]


Reimplemented from RenderAttrib.

Definition at line 76 of file renderModeAttrib.h.

Referenced by NodePath::set_texture_off().

float RenderModeAttrib::get_line_width (   )  const [inline]


Returns the line width.

This is only relevant when the mode is M_wireframe.

Definition at line 64 of file renderModeAttrib.I.

RenderModeAttrib::Mode RenderModeAttrib::get_mode (   )  const [inline]


Returns the render mode.

Definition at line 49 of file renderModeAttrib.I.

References _line_width, and INLINE.

int ReferenceCount::get_ref_count (   )  const [inline, inherited]


Returns the current reference count.

Definition at line 183 of file referenceCount.I.

Referenced by RenderState::determine_bin_index(), RenderEffects::determine_show_bounds(), FontPool::ns_garbage_collect(), TexturePool::ns_garbage_collect(), MaterialPool::ns_get_material(), and TexturePool::ns_release_texture().

virtual TypeHandle RenderModeAttrib::get_type (  void   )  const [inline, virtual]


Reimplemented from RenderAttrib.

Definition at line 84 of file renderModeAttrib.h.

int TypedObject::get_type_index (   )  const [inline, inherited]


Returns the internal index number associated with this object's TypeHandle, a unique number for each different type.

This is equivalent to get_type().get_index().

Definition at line 71 of file typedObject.I.

References TypeHandle::get_name(), TypedObject::get_type(), and INLINE.

void RenderModeAttrib::init_type (  void   )  [inline, static]


Reimplemented from RenderAttrib.

Definition at line 79 of file renderModeAttrib.h.

ConstPointerTo< RenderAttrib > RenderAttrib::invert_compose (  const RenderAttrib *  other  )  const [inline, inherited]


ConstPointerTo< RenderAttrib > RenderAttrib::invert_compose_impl (  const RenderAttrib *  other  )  const [protected, virtual, inherited]


Intended to be overridden by derived RenderAttrib types to specify how two consecutive RenderAttrib objects of the same type interact.

See invert_compose() and compose_impl().

Reimplemented in ClipPlaneAttrib, ColorScaleAttrib, CullFaceAttrib, DepthOffsetAttrib, LightAttrib, and TexMatrixAttrib.

Definition at line 297 of file renderAttrib.cxx.

bool TypedObject::is_exact_type (  TypeHandle  handle  )  const [inline, inherited]


Returns true if the current object is the indicated type exactly.

Definition at line 101 of file typedObject.I.

Referenced by PT(), and CollisionNode::xform().

bool TypedObject::is_of_type (  TypeHandle  handle  )  const [inline, inherited]


Returns true if the current object is or derives from the indicated type.

Definition at line 86 of file typedObject.I.

Referenced by EggMaterialCollection::collapse_equivalent_materials(), EggTextureCollection::collapse_equivalent_textures(), DeferredNodeProperty::compose(), AnimBundleMaker::create_s_channel(), CharacterMaker::create_slider(), ProjectionScreen::cull_callback(), DataNode::define_output(), EggNode::determine_draw_order(), CharacterMaker::egg_to_index(), EggGroupUniquifier::EggGroupUniquifier(), EggPoolUniquifier::EggPoolUniquifier(), EggGroupNode::find_textures(), StaticTextFont::get_glyph(), EggMaterialCollection::insert_materials(), EggTextureCollection::insert_textures(), CharacterJoint::make_copy(), PT(), EggGroupNode::r_flatten_transforms(), EggGroupNode::r_transform_vertices(), EggGroupNode::recompute_polygon_normals(), CollisionLevelState::reserve(), PandaFramework::reset_frame_rate(), PandaFramework::set_texture(), EggGroupNode::steal_children(), and DataGraphTraverser::traverse().

void RenderModeAttrib::issue (  GraphicsStateGuardianBase *  gsg  )  const [virtual]


Calls the appropriate method on the indicated GSG to issue the graphics commands appropriate to the given attribute.

This is normally called (indirectly) only from GraphicsStateGuardian::set_state() or modify_state().

Reimplemented from RenderAttrib.

Definition at line 80 of file renderModeAttrib.cxx.

ConstPointerTo< RenderAttrib > RenderModeAttrib::make (  RenderModeAttrib::Mode  mode,
float  line_width = 1.0f
)  [static]


Constructs a new RenderModeAttrib object that specifies whether to draw polygons in the normal, filled mode, or wireframe mode, or in some other yet-to-be-defined mode.

The line_width is relevant only if mode is M_wireframe, and specifies the thickness of the lines, in pixels, to use for wireframe.

Definition at line 55 of file renderModeAttrib.cxx.

References GraphicsStateGuardianBase::issue_render_mode().

Referenced by GLGraphicsStateGuardian::bind_texture(), CollisionSolid::fillin(), CollisionSolid::get_solid_viz_state(), and CullTraverser::make_bounds_viz().

ConstPointerTo< RenderAttrib > RenderAttrib::make_default (   )  const [inline, inherited]


RenderAttrib * RenderModeAttrib::make_default_impl (   )  const [protected, virtual]


Intended to be overridden by derived RenderModeAttrib types to specify what the default property for a RenderModeAttrib of this type should be.

This should return a newly-allocated RenderModeAttrib of the same type that corresponds to whatever the standard default for this kind of RenderModeAttrib is.

Implements RenderAttrib.

Definition at line 168 of file renderModeAttrib.cxx.

TypedWritable * RenderModeAttrib::make_from_bam (  const FactoryParams &  params  )  [static, protected]


This function is called by the BamReader's factory when a new object of type RenderModeAttrib is encountered in the Bam file.

It should create the RenderModeAttrib and extract its information from the file.

Definition at line 220 of file renderModeAttrib.cxx.

TypedWritable* RenderAttrib::new_from_bam (  RenderAttrib *  attrib,
BamReader *  manager
)  [static, protected, inherited]


void RenderModeAttrib::output (  ostream &  out  )  const [virtual]


Reimplemented from RenderAttrib.

Definition at line 93 of file renderModeAttrib.cxx.

References _line_width, _mode, and DCAST_INTO_R.

void RenderAttrib::output_comparefunc (  ostream &  out,
PandaCompareFunc  fn
)  const [protected, inherited]


Definition at line 141 of file renderAttrib.cxx.

References RenderAttrib::_attribs, RenderAttrib::_saved_entry, nassertr, and NULL.

int ReferenceCount::ref (   )  const [inline, inherited]


Explicitly increments the reference count.

User code should avoid using ref() and unref() directly, which can result in missed reference counts. Instead, let a PointerTo object manage the reference counting automatically.

This function is const, even though it changes the object, because generally fiddling with an object's reference count isn't considered part of fiddling with the object. An object might be const in other ways, but we still need to accurately count the number of references to it.

The return value is the new reference count.

Definition at line 225 of file referenceCount.I.

Referenced by ClientDevice::ClientDevice(), EggGroupNode::find_textures(), EggGroupNode::r_apply_texmats(), EggGroupNode::r_flatten_transforms(), and EggGroupNode::reverse_vertex_ordering().

void RenderModeAttrib::register_with_read_factory (  void   )  [static]


Tells the BamReader how to create objects of type RenderModeAttrib.

Definition at line 183 of file renderModeAttrib.cxx.

References _line_width, and _mode.

ConstPointerTo< RenderAttrib > RenderAttrib::return_new (  RenderAttrib *  attrib  )  [static, protected, inherited]


This function is used by derived RenderAttrib types to share a common RenderAttrib pointer for all equivalent RenderAttrib objects.

The make() function of the derived type should create a new RenderAttrib and pass it through return_new(), which will either save the pointer and return it unchanged (if this is the first similar such object) or delete it and return an equivalent pointer (if there was already a similar object saved).

Definition at line 186 of file renderAttrib.cxx.

Referenced by CullFaceAttrib::compare_to_impl(), TextureAttrib::make(), MaterialAttrib::make(), LightAttrib::make(), FogAttrib::make(), CullFaceAttrib::make(), ClipPlaneAttrib::make(), LightAttrib::make_all_off(), ClipPlaneAttrib::make_all_off(), ColorAttrib::make_flat(), and ColorAttrib::make_vertex().

void ReferenceCount::test_ref_count_integrity (   )  const [inline, inherited]


Does some easy checks to make sure that the reference count isn't completely bogus.

Definition at line 328 of file referenceCount.I.

References INLINE.

Referenced by EggNode::determine_bin(), and ReferenceCount::~ReferenceCount().

int ReferenceCount::unref (   )  const [inline, inherited]


Explicitly decrements the reference count.

Note that the object will not be implicitly deleted by unref() simply because the reference count drops to zero. (Having a member function delete itself is problematic; plus, we don't have a virtual destructor anyway.) However, see the helper function unref_delete().

User code should avoid using ref() and unref() directly, which can result in missed reference counts. Instead, let a PointerTo object manage the reference counting automatically.

This function is const, even though it changes the object, because generally fiddling with an object's reference count isn't considered part of fiddling with the object. An object might be const in other ways, but we still need to accurately count the number of references to it.

The return value is the new reference count.

Definition at line 293 of file referenceCount.I.

References INLINE.

Referenced by RenderState::determine_bin_index(), and RenderEffects::determine_show_bounds().

void RenderAttrib::write (  ostream &  out,
int  indent_level
)  const [virtual, inherited]


Definition at line 155 of file renderAttrib.cxx.

References RenderAttrib::_attribs.

void RenderModeAttrib::write_datagram (  BamWriter *  manager,
Datagram &  dg
)  [virtual]


Writes the contents of this object to the datagram for shipping out to a Bam file.

Reimplemented from RenderAttrib.

Definition at line 198 of file renderModeAttrib.cxx.

Member Data Documentation

float RenderModeAttrib::_line_width [private]


Definition at line 65 of file renderModeAttrib.h.

Referenced by get_mode(), output(), and register_with_read_factory().

Mode RenderModeAttrib::_mode [private]


Definition at line 64 of file renderModeAttrib.h.

Referenced by output(), register_with_read_factory(), and RenderModeAttrib().

TypeHandle RenderModeAttrib::_type_handle [static, private]


Reimplemented from RenderAttrib.

Definition at line 30 of file renderModeAttrib.cxx.

TypedWritable *const TypedWritable::Null = (TypedWritable*)0L [static, inherited]


Definition at line 25 of file typedWritable.cxx.

Referenced by Child::complete_pointers(), Parent::complete_pointers(), Person::complete_pointers(), LoaderFileTypeBam::get_extension(), PartGroup::pick_channel_index(), BamReader::read_pointer(), and AnimGroup::write_datagram().

The documentation for this class was generated from the following files:
Generated on Fri May 2 00:54:43 2003 for Panda by doxygen1.3
