PartBundle Class Reference

#include <partBundle.h>

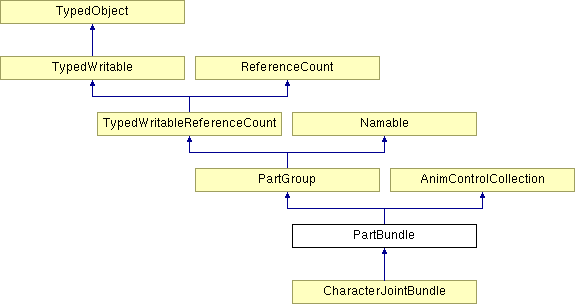

Inheritance diagram for PartBundle:


Public Types
typedef pmap< AnimControl *, float >	ChannelBlend
typedef first_of_pair_iterator< ChannelBlend::const_iterator >	control_iterator
typedef ChannelBlend::size_type	control_size_type
Public Member Functions
	PartBundle (const string &name="")
virtual PartGroup *	make_copy () const
void	set_blend_type (BlendType bt)
INLINE BlendType	get_blend_type () const
INLINE PartBundleNode *	get_node () const
void	clear_control_effects ()
void	set_control_effect (AnimControl *control, float effect)
float	get_control_effect (AnimControl *control)
virtual void	output (ostream &out) const
virtual void	write (ostream &out, int indent_level) const
	PT (AnimControl) bind_anim(AnimBundle *anim
bool	bind_anim (AnimBundle *anim, const string &name, int hierarchy_match_flags=0)
INLINE control_iterator	control_begin () const
INLINE control_iterator	control_end () const
INLINE control_size_type	control_size () const
INLINE const ChannelBlend &	get_blend_map () const
void	advance_time (double time)
bool	update ()
bool	force_update ()
virtual void	control_activated (AnimControl *control)
virtual void	finalize ()
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
void	register_with_read_factory (void)
TypedWritable *	make_PartBundle (const FactoryParams &params)
TypeHandle	get_class_type ()
void	init_type ()
Public Attributes
PUBLISHED	__pad0__: enum BlendType { BT_single
PUBLISHED	BT_linear
PUBLISHED	BT_normalized_linear
int	hierarchy_match_flags = 0)
Protected Member Functions
	PartBundle (const PartBundle &copy)
void	recompute_net_blend ()
void	clear_and_stop_except (AnimControl *control)
Protected Attributes
BlendType	_blend_type
PartBundleNode *	_node
AnimControl *	_last_control_set
ChannelBlend	_blend
float	_net_blend
bool	_anim_changed
Static Private Attributes
TypeHandle	_type_handle
Friends
class	PartBundleNode

Member Typedef Documentation

typedef pmap<AnimControl *, float> PartBundle::ChannelBlend

Definition at line 46 of file partBundle.h.
Referenced by clear_and_stop_except(), MovingPartScalar::get_blend_value(), and MovingPartMatrix::get_blend_value().

typedef first_of_pair_iterator<ChannelBlend::const_iterator> PartBundle::control_iterator

Definition at line 48 of file partBundle.h.

typedef ChannelBlend::size_type PartBundle::control_size_type

Definition at line 49 of file partBundle.h.

Constructor & Destructor Documentation

PartBundle::PartBundle ( const PartBundle & copy ) [protected]

Definition at line 42 of file partBundle.cxx.
References _anim_changed, _last_control_set, _net_blend, and NULL.
Referenced by make_copy().

PartBundle::PartBundle ( const string & name = "" )

Definition at line 61 of file partBundle.cxx.
References _anim_changed, _blend_type, _last_control_set, _net_blend, and NULL.

Member Function Documentation

void PartBundle::advance_time ( double time )

Definition at line 336 of file partBundle.cxx.
References _blend, and AnimControl::advance_time().

bool PartBundle::bind_anim ( AnimBundle * anim,

const string & name,

int hierarchy_match_flags = 0

)

Definition at line 318 of file partBundle.cxx.
References NULL, PT(), and AnimControlCollection::store_anim().
Referenced by bind_anims().

void PartBundle::clear_and_stop_except ( AnimControl * control ) [protected]

Definition at line 480 of file partBundle.cxx.
References _anim_changed, _blend, _net_blend, ChannelBlend, and AnimControl::stop().
Referenced by set_blend_type(), and set_control_effect().

void PartBundle::clear_control_effects ( )

Definition at line 135 of file partBundle.cxx.
References _anim_changed, _blend, and _net_blend.

void PartBundle::control_activated ( AnimControl * control ) [virtual]

Definition at line 400 of file partBundle.cxx.
References get_blend_type(), AnimControl::get_part(), and set_control_effect().
Referenced by AnimControl::loop(), AnimControl::pingpong(), AnimControl::play(), and AnimControl::pose().

INLINE control_iterator PartBundle::control_begin ( ) const

INLINE control_iterator PartBundle::control_end ( ) const

INLINE control_size_type PartBundle::control_size ( ) const

Referenced by set_blend_type().

void PartBundle::finalize ( ) [virtual]

Reimplemented from TypedWritable.
Definition at line 436 of file partBundle.cxx.
References PartGroup::do_update(), and NULL.

virtual TypeHandle PartBundle::force_init_type ( void ) [inline, virtual]

Reimplemented from PartGroup.
Reimplemented in CharacterJointBundle.
Definition at line 154 of file partBundle.h.
References PartGroup::get_class_type(), and PartGroup::init_type().

bool PartBundle::force_update ( )

Definition at line 377 of file partBundle.cxx.
References _anim_changed, _blend, PartGroup::do_update(), AnimControl::mark_channels(), and NULL.

INLINE const ChannelBlend& PartBundle::get_blend_map ( ) const

INLINE BlendType PartBundle::get_blend_type ( ) const

Referenced by control_activated(), and set_control_effect().

TypeHandle PartBundle::get_class_type ( void ) [inline, static]

Reimplemented from PartGroup.
Reimplemented in CharacterJointBundle.
Definition at line 155 of file partBundle.h.
Referenced by CharacterJointBundle::force_init_type(), CharacterJointBundle::get_type(), CharacterJointBundle::init_type(), and register_with_read_factory().

float PartBundle::get_control_effect ( AnimControl * control )

Definition at line 200 of file partBundle.cxx.
References _blend, and AnimControl::get_part().
Referenced by set_control_effect().

INLINE PartBundleNode* PartBundle::get_node ( ) const

virtual TypeHandle PartBundle::get_type ( void ) const [inline, virtual]

Reimplemented from PartGroup.
Reimplemented in CharacterJointBundle.
Definition at line 151 of file partBundle.h.
References PartGroup::get_class_type().
Referenced by output(), and write().

void PartBundle::init_type ( void ) [inline, static]

Reimplemented from PartGroup.
Reimplemented in CharacterJointBundle.
Definition at line 158 of file partBundle.h.
References PartGroup::get_class_type(), PartGroup::init_type(), and register_type().
Referenced by ConfigureFn(), CharacterJointBundle::force_init_type(), and CharacterJointBundle::init_type().

PartGroup * PartBundle::make_copy ( ) const [virtual]

Reimplemented from PartGroup.
Reimplemented in CharacterJointBundle.
Definition at line 76 of file partBundle.cxx.
References PartBundle().

TypedWritable * PartBundle::make_PartBundle ( const FactoryParams & params ) [static]

Definition at line 447 of file partBundle.cxx.
References PartGroup::fillin(), params, parse_params(), and BamReader::register_finalize().
Referenced by register_with_read_factory().

void PartBundle::output ( ostream & out ) const [virtual]

Reimplemented from Namable.
Definition at line 220 of file partBundle.cxx.
References Namable::get_name(), and get_type().
Referenced by operator<<().

PartBundle::PT ( AnimControl )

Referenced by bind_anim().

void PartBundle::recompute_net_blend ( ) [protected]

Definition at line 420 of file partBundle.cxx.
References _blend, and _net_blend.
Referenced by set_control_effect().

void PartBundle::register_with_read_factory ( void ) [static]

Reimplemented from PartGroup.
Reimplemented in CharacterJointBundle.
Definition at line 465 of file partBundle.cxx.
References get_class_type(), BamReader::get_factory(), make_PartBundle(), and Factory< TypedWritable >::register_factory().
Referenced by ConfigureFn().

void PartBundle::set_blend_type ( BlendType bt )

Definition at line 102 of file partBundle.cxx.
References _anim_changed, _blend_type, _last_control_set, clear_and_stop_except(), control_size(), and NULL.

void PartBundle::set_control_effect ( AnimControl * control,

float effect

)

Definition at line 161 of file partBundle.cxx.
References _anim_changed, _blend, _last_control_set, clear_and_stop_except(), get_blend_type(), get_control_effect(), AnimControl::get_part(), and recompute_net_blend().
Referenced by control_activated().

bool PartBundle::update ( )

Definition at line 355 of file partBundle.cxx.
References _anim_changed, _blend, PartGroup::do_update(), AnimControl::mark_channels(), and NULL.

void PartBundle::write ( ostream & out,

int indent_level

) const [virtual]

Reimplemented from PartGroup.
Definition at line 231 of file partBundle.cxx.
References Namable::get_name(), get_type(), indent(), and PartGroup::write_descendants().

Friends And Related Function Documentation

friend class PartBundleNode [friend]

Definition at line 167 of file partBundle.h.

Member Data Documentation

PUBLISHED PartBundle::__pad0__

Reimplemented from AnimControlCollection.
Reimplemented in CharacterJointBundle.
Definition at line 73 of file partBundle.h.

bool PartBundle::_anim_changed [protected]

Definition at line 141 of file partBundle.h.
Referenced by clear_and_stop_except(), clear_control_effects(), force_update(), PartBundle(), set_blend_type(), set_control_effect(), and update().

ChannelBlend PartBundle::_blend [protected]

Definition at line 139 of file partBundle.h.
Referenced by advance_time(), clear_and_stop_except(), clear_control_effects(), force_update(), get_control_effect(), recompute_net_blend(), set_control_effect(), and update().

BlendType PartBundle::_blend_type [protected]

Definition at line 135 of file partBundle.h.
Referenced by PartBundle(), and set_blend_type().

AnimControl* PartBundle::_last_control_set [protected]

Definition at line 138 of file partBundle.h.
Referenced by PartBundle(), set_blend_type(), and set_control_effect().

float PartBundle::_net_blend [protected]

Definition at line 140 of file partBundle.h.
Referenced by clear_and_stop_except(), clear_control_effects(), PartBundle(), and recompute_net_blend().

PartBundleNode* PartBundle::_node [protected]

Definition at line 136 of file partBundle.h.

TypeHandle PartBundle::_type_handle [static, private]

Reimplemented from PartGroup.
Reimplemented in CharacterJointBundle.
Definition at line 31 of file partBundle.cxx.

PUBLISHED PartBundle::BT_linear

Definition at line 73 of file partBundle.h.
Referenced by MovingPartMatrix::get_blend_value().

PUBLISHED PartBundle::BT_normalized_linear

Definition at line 73 of file partBundle.h.
Referenced by MovingPartMatrix::get_blend_value().

int PartBundle::hierarchy_match_flags = 0)

Definition at line 107 of file partBundle.h.

The documentation for this class was generated from the following files:
