BaseParticleRenderer Class Reference

#include <baseParticleRenderer.h>

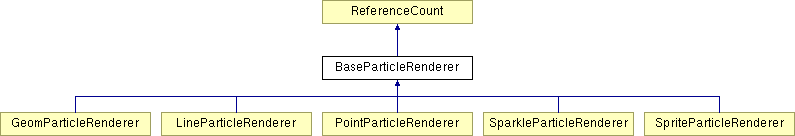

Inheritance diagram for BaseParticleRenderer:

List of all members.

Public Member Functions
virtual BaseParticleRenderer *	make_copy (void)=0
Protected Member Functions
	BaseParticleRenderer (ParticleRendererAlphaMode alpha_decay=PR_ALPHA_NONE)
	BaseParticleRenderer (const BaseParticleRenderer &copy)
void	update_alpha_mode (ParticleRendererAlphaMode am)
void	enable_alpha (void)
void	disable_alpha (void)
INLINE float	get_cur_alpha (BaseParticle *bp)
virtual void	resize_pool (int new_size)=0
	CPT (RenderState) _render_state
Protected Attributes
ParticleRendererAlphaMode	_alpha_mode
Private Types
enum	ParticleRendererBlendMethod { PP_NO_BLEND, PP_BLEND_LINEAR, PP_BLEND_CUBIC }
Private Member Functions
	PT (GeomNode) _render_node
virtual void	birth_particle (int index)=0
virtual void	kill_particle (int index)=0
virtual void	init_geoms (void)=0
virtual void	render (pvector< PT(PhysicsObject) > &po_vector, int ttl_particles)=0
virtual	~BaseParticleRenderer (void)
INLINE GeomNode *	get_render_node (void) const
INLINE void	set_alpha_mode (ParticleRendererAlphaMode am)
INLINE ParticleRendererAlphaMode	get_alpha_mode (void) const
INLINE void	set_user_alpha (float ua)
INLINE float	get_user_alpha (void) const
Private Attributes
float	_user_alpha
PUBLISHED	__pad0__: enum ParticleRendererAlphaMode { PR_ALPHA_NONE
PUBLISHED	PR_ALPHA_OUT
PUBLISHED	PR_ALPHA_IN
PUBLISHED	PR_ALPHA_USER
PUBLISHED	PR_NOT_INITIALIZED_YET
Friends
class	ParticleSystem

---

Member Enumeration Documentation

enum BaseParticleRenderer::ParticleRendererBlendMethod [private]

Enumeration values: PP_NO_BLEND  PP_BLEND_LINEAR  PP_BLEND_CUBIC  Definition at line 67 of file baseParticleRenderer.h.

---

Constructor & Destructor Documentation

BaseParticleRenderer::~BaseParticleRenderer (  void   )  [private, virtual]

Definition at line 60 of file baseParticleRenderer.cxx.

BaseParticleRenderer::BaseParticleRenderer (  ParticleRendererAlphaMode  alpha_decay = PR_ALPHA_NONE  )  [protected]

Definition at line 30 of file baseParticleRenderer.cxx. References _user_alpha, and update_alpha_mode().

BaseParticleRenderer::BaseParticleRenderer (  const BaseParticleRenderer &  copy  )  [protected]

Definition at line 45 of file baseParticleRenderer.cxx. References _user_alpha, and update_alpha_mode().

---

Member Function Documentation

virtual void BaseParticleRenderer::birth_particle (  int  index  )  [private, pure virtual]

Implemented in GeomParticleRenderer, LineParticleRenderer, PointParticleRenderer, SparkleParticleRenderer, and SpriteParticleRenderer.

BaseParticleRenderer::CPT (  RenderState   )  [protected]

void BaseParticleRenderer::disable_alpha (  void   )  [protected]

Definition at line 80 of file baseParticleRenderer.cxx. References RenderAttrib::M_none. Referenced by update_alpha_mode().

void BaseParticleRenderer::enable_alpha (  void   )  [protected]

Definition at line 70 of file baseParticleRenderer.cxx. References TransparencyAttrib::M_alpha. Referenced by update_alpha_mode().

INLINE ParticleRendererAlphaMode BaseParticleRenderer::get_alpha_mode (  void   )  const [private]

Referenced by SpriteParticleRenderer::render().

INLINE float BaseParticleRenderer::get_cur_alpha (  BaseParticle *  bp  )  [protected]

INLINE GeomNode* BaseParticleRenderer::get_render_node (  void   )  const [private]

Referenced by GeomParticleRenderer::birth_particle(), SpriteParticleRenderer::init_geoms(), SparkleParticleRenderer::init_geoms(), PointParticleRenderer::init_geoms(), LineParticleRenderer::init_geoms(), GeomParticleRenderer::kill_nodes(), GeomParticleRenderer::kill_particle(), SpriteParticleRenderer::render(), SparkleParticleRenderer::render(), PointParticleRenderer::render(), and LineParticleRenderer::render().

INLINE float BaseParticleRenderer::get_user_alpha (  void   )  const [private]

Referenced by PointParticleRenderer::create_color(), SpriteParticleRenderer::render(), SparkleParticleRenderer::render(), LineParticleRenderer::render(), and GeomParticleRenderer::render().

virtual void BaseParticleRenderer::init_geoms (  void   )  [private, pure virtual]

Implemented in GeomParticleRenderer, LineParticleRenderer, PointParticleRenderer, SparkleParticleRenderer, and SpriteParticleRenderer.

virtual void BaseParticleRenderer::kill_particle (  int  index  )  [private, pure virtual]

Implemented in GeomParticleRenderer, LineParticleRenderer, PointParticleRenderer, SparkleParticleRenderer, and SpriteParticleRenderer.

virtual BaseParticleRenderer* BaseParticleRenderer::make_copy (  void   )  [pure virtual]

Implemented in GeomParticleRenderer, LineParticleRenderer, PointParticleRenderer, SparkleParticleRenderer, and SpriteParticleRenderer.

BaseParticleRenderer::PT (  GeomNode   )  [private]

virtual void BaseParticleRenderer::render (  pvector< PT(PhysicsObject) > &  po_vector, int  ttl_particles )  [private, pure virtual]

Implemented in GeomParticleRenderer, LineParticleRenderer, PointParticleRenderer, SparkleParticleRenderer, and SpriteParticleRenderer.

virtual void BaseParticleRenderer::resize_pool (  int  new_size  )  [protected, pure virtual]

Implemented in GeomParticleRenderer, LineParticleRenderer, PointParticleRenderer, SparkleParticleRenderer, and SpriteParticleRenderer.

INLINE void BaseParticleRenderer::set_alpha_mode (  ParticleRendererAlphaMode  am  )  [private]

INLINE void BaseParticleRenderer::set_user_alpha (  float  ua  )  [private]

void BaseParticleRenderer::update_alpha_mode (  ParticleRendererAlphaMode  am  )  [protected]

Definition at line 90 of file baseParticleRenderer.cxx. References _alpha_mode, disable_alpha(), and enable_alpha(). Referenced by BaseParticleRenderer().

---

Friends And Related Function Documentation

friend class ParticleSystem [friend]

Definition at line 103 of file baseParticleRenderer.h.

---

Member Data Documentation

PUBLISHED BaseParticleRenderer::__pad0__ [private]

Reimplemented from ReferenceCount. Reimplemented in GeomParticleRenderer, LineParticleRenderer, PointParticleRenderer, SparkleParticleRenderer, and SpriteParticleRenderer. Definition at line 60 of file baseParticleRenderer.h.

ParticleRendererAlphaMode BaseParticleRenderer::_alpha_mode [protected]

Definition at line 84 of file baseParticleRenderer.h. Referenced by PointParticleRenderer::create_color(), SparkleParticleRenderer::render(), LineParticleRenderer::render(), GeomParticleRenderer::render(), and update_alpha_mode().

float BaseParticleRenderer::_user_alpha [private]

Definition at line 41 of file baseParticleRenderer.h. Referenced by BaseParticleRenderer().

PUBLISHED BaseParticleRenderer::PR_ALPHA_IN [private]

Definition at line 60 of file baseParticleRenderer.h.

PUBLISHED BaseParticleRenderer::PR_ALPHA_OUT [private]

Definition at line 60 of file baseParticleRenderer.h.

PUBLISHED BaseParticleRenderer::PR_ALPHA_USER [private]

Definition at line 60 of file baseParticleRenderer.h. Referenced by event_add_particles().

PUBLISHED BaseParticleRenderer::PR_NOT_INITIALIZED_YET [private]

Definition at line 60 of file baseParticleRenderer.h.

---

The documentation for this class was generated from the following files:

• baseParticleRenderer.h
• baseParticleRenderer.cxx

---
