GeomNode Class Reference

#include <geomNode.h>

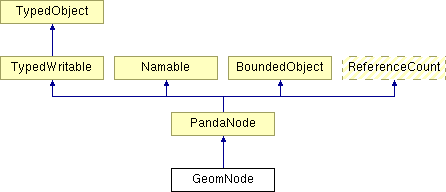

Inheritance diagram for GeomNode:


Public Member Functions
virtual	~GeomNode ()
virtual PandaNode *	make_copy () const
virtual void	apply_attribs_to_vertices (const AccumulatedAttribs &attribs, int attrib_types, GeomTransformer &transformer)
virtual void	xform (const LMatrix4f &mat)
virtual PandaNode *	combine_with (PandaNode *other)
virtual	CPT (TransformState) calc_tight_bounds(LPoint3f &min_point
INLINE Geom *	get_geom (int n) const
INLINE const RenderState *	get_geom_state (int n) const
INLINE void	set_geom_state (int n, const RenderState *state)
INLINE int	add_geom (Geom geom, const RenderState state=RenderState::make_empty())
void	add_geoms_from (const GeomNode *other)
INLINE void	remove_geom (int n)
INLINE void	remove_all_geoms ()
void	write_geoms (ostream &out, int indent_level) const
void	write_verbose (ostream &out, int indent_level) const
virtual void	output (ostream &out) const
virtual bool	is_geom_node () const
virtual void	write_datagram (BamWriter *manager, Datagram &dg)
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
void	register_with_read_factory ()
TypeHandle	get_class_type ()
void	init_type ()
Public Attributes
virtual LPoint3f &	max_point
virtual LPoint3f bool &	found_any
virtual LPoint3f bool const TransformState *transform	const
PUBLISHED	__pad1__: INLINE int get_num_geoms() const
Protected Member Functions
	GeomNode (const GeomNode &copy)
virtual BoundingVolume *	recompute_internal_bound ()
void	fillin (DatagramIterator &scan, BamReader *manager)
Static Protected Member Functions
TypedWritable *	make_from_bam (const FactoryParams &params)
Private Types
typedef pvector< GeomEntry >	Geoms
typedef CycleDataReader< CData >	CDReader
typedef CycleDataWriter< CData >	CDWriter
Private Attributes
PUBLISHED	__pad0__: GeomNode(const string &name)
PipelineCycler< CData >	_cycler
Static Private Attributes
TypeHandle	_type_handle
Friends
class	PandaNode::Children
class	GeomTransformer

Member Typedef Documentation

typedef CycleDataReader<CData> GeomNode::CDReader [private]

Reimplemented from PandaNode.
Definition at line 102 of file geomNode.h.

typedef CycleDataWriter<CData> GeomNode::CDWriter [private]

Reimplemented from PandaNode.
Definition at line 103 of file geomNode.h.

typedef pvector<GeomEntry> GeomNode::Geoms [private]

Definition at line 86 of file geomNode.h.

Constructor & Destructor Documentation

GeomNode::GeomNode ( const GeomNode & copy ) [protected]

Definition at line 130 of file geomNode.cxx.
References _cycler.
Referenced by make_copy(), and make_from_bam().

GeomNode::~GeomNode ( ) [virtual]

Definition at line 142 of file geomNode.cxx.

Member Function Documentation

INLINE int GeomNode::add_geom ( Geom * geom,

const RenderState * state = RenderState::make_empty()

)

Referenced by TextNode::assemble_row(), LineSegs::create(), event_T(), Spotlight::fill_viz_geom(), SpriteParticleRenderer::init_geoms(), SparkleParticleRenderer::init_geoms(), PointParticleRenderer::init_geoms(), LineParticleRenderer::init_geoms(), WindowFramework::load_default_model(), Character::r_copy_char(), setup_projtex(), setup_spotlight(), shader_keys(), and TextNode::tack_on_accent().

void GeomNode::add_geoms_from ( const GeomNode * other )

Definition at line 321 of file geomNode.cxx.
References _cycler, and BoundedObject::mark_bound_stale().
Referenced by combine_with().

void GeomNode::apply_attribs_to_vertices ( const AccumulatedAttribs & attribs,

int attrib_types,

GeomTransformer & transformer

) [virtual]

Reimplemented from PandaNode.
Definition at line 172 of file geomNode.cxx.
References GeomTransformer::apply_state(), DCAST, ColorAttrib::get_color(), ColorAttrib::get_color_type(), TexMatrixAttrib::get_mat(), ColorScaleAttrib::get_scale(), NULL, GeomTransformer::set_color(), ColorAttrib::T_flat, GeomTransformer::transform_colors(), GeomTransformer::transform_texcoords(), GeomTransformer::transform_vertices(), SceneGraphReducer::TT_color, SceneGraphReducer::TT_color_scale, SceneGraphReducer::TT_other, SceneGraphReducer::TT_tex_matrix, and SceneGraphReducer::TT_transform.

PandaNode * GeomNode::combine_with ( PandaNode * other ) [virtual]

Reimplemented from PandaNode.
Definition at line 249 of file geomNode.cxx.
References add_geoms_from(), PandaNode::combine_with(), DCAST, get_class_type(), and TypedObject::is_exact_type().

virtual GeomNode::CPT ( TransformState ) [virtual]

Reimplemented from PandaNode.

void GeomNode::fillin ( DatagramIterator & scan,

BamReader * manager

) [protected]

Reimplemented from PandaNode.
Definition at line 482 of file geomNode.cxx.
References _cycler, PandaNode::fillin(), and BamReader::read_cdata().
Referenced by make_from_bam().

virtual TypeHandle GeomNode::force_init_type ( void ) [inline, virtual]

Reimplemented from PandaNode.
Definition at line 125 of file geomNode.h.

TypeHandle GeomNode::get_class_type ( void ) [inline, static]

Reimplemented from PandaNode.
Definition at line 114 of file geomNode.h.
Referenced by Builder::build(), combine_with(), EggLoader::make_node(), ReportGeoms::reached_node(), register_with_read_factory(), and EggLoader::reparent_decals().

INLINE Geom* GeomNode::get_geom ( int n ) const

Referenced by SceneGraphAnalyzer::collect_statistics(), CollisionTraverser::compare_collider_to_geom_node(), GraphicsStateGuardian::draw_geom_node(), GLGraphicsStateGuardian::draw_geom_node(), CRGraphicsStateGuardian::draw_geom_node(), StaticTextFont::find_character_gsets(), GLGraphicsStateGuardian::prepare_geom_node(), CRGraphicsStateGuardian::prepare_geom_node(), DXGraphicsStateGuardian7::prepare_texture(), Character::r_copy_char(), NodePath::r_force_recompute_bounds(), ReportGeoms::reached_node(), ProjectionScreen::recompute_geom_node(), and SpriteParticleRenderer::set_from_node().

INLINE const RenderState* GeomNode::get_geom_state ( int n ) const

Referenced by SceneGraphAnalyzer::collect_statistics(), StaticTextFont::find_character_gsets(), NodePath::r_adjust_all_priorities(), Character::r_copy_char(), NodePath::r_find_all_textures(), NodePath::r_find_texture(), and NodePath::r_prepare_scene().

virtual TypeHandle GeomNode::get_type ( void ) const [inline, virtual]

Reimplemented from PandaNode.
Definition at line 122 of file geomNode.h.

void GeomNode::init_type ( void ) [inline, static]

Reimplemented from PandaNode.
Definition at line 117 of file geomNode.h.
References PandaNode::get_class_type(), PandaNode::init_type(), and register_type().
Referenced by init_libpgraph().

bool GeomNode::is_geom_node ( ) const [virtual]

Reimplemented from PandaNode.
Definition at line 395 of file geomNode.cxx.

PandaNode * GeomNode::make_copy ( ) const [virtual]

Reimplemented from PandaNode.
Definition at line 155 of file geomNode.cxx.
References GeomNode().

TypedWritable * GeomNode::make_from_bam ( const FactoryParams & params ) [static, protected]

Reimplemented from PandaNode.
Definition at line 463 of file geomNode.cxx.
References fillin(), GeomNode(), params, and parse_params().
Referenced by register_with_read_factory().

void GeomNode::output ( ostream & out ) const [virtual]

Reimplemented from PandaNode.
Definition at line 378 of file geomNode.cxx.
References PandaNode::output().

BoundingVolume * GeomNode::recompute_internal_bound ( ) [protected, virtual]

Reimplemented from PandaNode.
Definition at line 408 of file geomNode.cxx.
References _cycler, BoundingVolume::around(), NULL, and PandaNode::recompute_internal_bound().

void GeomNode::register_with_read_factory ( ) [static]

Reimplemented from PandaNode.
Definition at line 438 of file geomNode.cxx.
References get_class_type(), BamReader::get_factory(), make_from_bam(), and Factory< TypedWritable >::register_factory().
Referenced by init_libpgraph().

INLINE void GeomNode::remove_all_geoms ( )

Referenced by SpriteParticleRenderer::init_geoms(), SparkleParticleRenderer::init_geoms(), PointParticleRenderer::init_geoms(), LineParticleRenderer::init_geoms(), and Character::r_copy_char().

INLINE void GeomNode::remove_geom ( int n )

INLINE void GeomNode::set_geom_state ( int n,

const RenderState * state

)

Referenced by NodePath::r_adjust_all_priorities().

void GeomNode::write_datagram ( BamWriter * manager,

Datagram & dg

) [virtual]

Reimplemented from PandaNode.
Definition at line 449 of file geomNode.cxx.
References _cycler, BamWriter::write_cdata(), and PandaNode::write_datagram().

void GeomNode::write_geoms ( ostream & out,

int indent_level

) const

Definition at line 342 of file geomNode.cxx.
References _cycler, indent(), and PandaNode::write().

void GeomNode::write_verbose ( ostream & out,

int indent_level

) const

Definition at line 360 of file geomNode.cxx.
References _cycler, indent(), and PandaNode::write().

void GeomNode::xform ( const LMatrix4f & mat ) [virtual]

Reimplemented from PandaNode.
Definition at line 228 of file geomNode.cxx.
References GeomTransformer::transform_vertices().

Friends And Related Function Documentation

friend class GeomTransformer [friend]

Definition at line 131 of file geomNode.h.

friend class PandaNode::Children [friend]

Reimplemented from PandaNode.
Definition at line 130 of file geomNode.h.

Member Data Documentation

PUBLISHED GeomNode::__pad0__ [private]

Reimplemented from PandaNode.
Definition at line 40 of file geomNode.h.

PUBLISHED GeomNode::__pad1__

Reimplemented from PandaNode.
Definition at line 58 of file geomNode.h.

PipelineCycler<CData> GeomNode::_cycler [private]

Reimplemented from PandaNode.
Definition at line 101 of file geomNode.h.
Referenced by add_geoms_from(), GeomTransformer::apply_state(), fillin(), GeomNode(), recompute_internal_bound(), GeomTransformer::set_color(), GeomTransformer::transform_colors(), GeomTransformer::transform_texcoords(), GeomTransformer::transform_vertices(), write_datagram(), write_geoms(), and write_verbose().

TypeHandle GeomNode::_type_handle [static, private]

Reimplemented from PandaNode.
Definition at line 29 of file geomNode.cxx.

virtual LPoint3f bool const TransformState* transform GeomNode::const

Reimplemented from PandaNode.
Definition at line 53 of file geomNode.h.

virtual LPoint3f bool& GeomNode::found_any

Reimplemented from PandaNode.
Definition at line 53 of file geomNode.h.

virtual LPoint3f& GeomNode::max_point

Reimplemented from PandaNode.
Definition at line 53 of file geomNode.h.

The documentation for this class was generated from the following files:
