glxGraphicsWindow Class Reference

#include <glxGraphicsWindow.h>

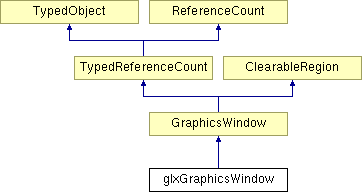

Inheritance diagram for glxGraphicsWindow:

List of all members.

Public Member Functions
	glxGraphicsWindow (GraphicsPipe *pipe, GraphicsStateGuardian *gsg)
virtual	~glxGraphicsWindow ()
virtual void	make_current ()
virtual void	release_gsg ()
virtual bool	begin_frame ()
virtual void	begin_flip ()
virtual void	process_events ()
virtual void	set_properties_now (WindowProperties &properties)
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
TypeHandle	get_class_type ()
void	init_type ()
Protected Member Functions
virtual void	close_window ()
virtual bool	open_window ()
Private Member Functions
void	set_wm_properties (const WindowProperties &properties)
void	setup_colormap (XVisualInfo *visual)
ButtonHandle	get_button (XKeyEvent *key_event)
Static Private Member Functions
Bool	check_event (Display *display, XEvent *event, char *arg)
Private Attributes
Display *	_display
int	_screen
Window	_xwindow
Colormap	_colormap
long	_event_mask
bool	_awaiting_configure
Atom	_wm_delete_window
Static Private Attributes
TypeHandle	_type_handle

---

Constructor & Destructor Documentation

glxGraphicsWindow::glxGraphicsWindow (  GraphicsPipe *  pipe, GraphicsStateGuardian *  gsg )

Definition at line 43 of file glxGraphicsWindow.cxx. References _awaiting_configure, _display, GraphicsWindow::_input_devices, _screen, _wm_delete_window, _xwindow, DCAST_INTO_V, glxGraphicsPipe::get_display(), glxGraphicsPipe::get_screen(), glxGraphicsPipe::get_wm_delete_window(), NULL, and GraphicsWindowInputDevice::pointer_and_keyboard().

glxGraphicsWindow::~glxGraphicsWindow (   )  [virtual]

Definition at line 65 of file glxGraphicsWindow.cxx.

---

Member Function Documentation

void glxGraphicsWindow::begin_flip (   )  [virtual]

Reimplemented from GraphicsWindow. Definition at line 138 of file glxGraphicsWindow.cxx. References _display, _xwindow, make_current(), and NULL.

bool glxGraphicsWindow::begin_frame (   )  [virtual]

Reimplemented from GraphicsWindow. Definition at line 113 of file glxGraphicsWindow.cxx. References GraphicsWindow::begin_frame().

Bool glxGraphicsWindow::check_event (  Display *  display, XEvent *  event, char *  arg )  [static, private]

Definition at line 860 of file glxGraphicsWindow.cxx. References _xwindow. Referenced by process_events().

void glxGraphicsWindow::close_window (   )  [protected, virtual]

Reimplemented from GraphicsWindow. Definition at line 351 of file glxGraphicsWindow.cxx. References _display, _xwindow, and NULL. Referenced by process_events().

virtual TypeHandle glxGraphicsWindow::force_init_type (  void   )  [inline, virtual]

Reimplemented from GraphicsWindow. Definition at line 85 of file glxGraphicsWindow.h. References get_class_type(), and init_type().

ButtonHandle glxGraphicsWindow::get_button (  XKeyEvent *  key_event  )  [private]

Definition at line 574 of file glxGraphicsWindow.cxx. References KeyboardButton::alt(), KeyboardButton::ascii_key(), KeyboardButton::backspace(), KeyboardButton::caps_lock(), KeyboardButton::control(), KeyboardButton::del(), KeyboardButton::down(), KeyboardButton::end(), KeyboardButton::enter(), KeyboardButton::escape(), KeyboardButton::f1(), KeyboardButton::f10(), KeyboardButton::f11(), KeyboardButton::f12(), KeyboardButton::f2(), KeyboardButton::f3(), KeyboardButton::f4(), KeyboardButton::f5(), KeyboardButton::f6(), KeyboardButton::f7(), KeyboardButton::f8(), KeyboardButton::f9(), KeyboardButton::home(), KeyboardButton::insert(), KeyboardButton::left(), KeyboardButton::meta(), ButtonHandle::none(), KeyboardButton::page_down(), KeyboardButton::page_up(), KeyboardButton::right(), KeyboardButton::shift(), KeyboardButton::shift_lock(), KeyboardButton::space(), KeyboardButton::tab(), and KeyboardButton::up(). Referenced by process_events().

TypeHandle glxGraphicsWindow::get_class_type (  void   )  [inline, static]

Reimplemented from GraphicsWindow. Definition at line 74 of file glxGraphicsWindow.h. References _type_handle. Referenced by force_init_type(), and get_type().

virtual TypeHandle glxGraphicsWindow::get_type (  void   )  const [inline, virtual]

Reimplemented from GraphicsWindow. Definition at line 82 of file glxGraphicsWindow.h. References get_class_type().

void glxGraphicsWindow::init_type (  void   )  [inline, static]

Reimplemented from GraphicsWindow. Definition at line 77 of file glxGraphicsWindow.h. References _type_handle, GraphicsWindow::get_class_type(), GraphicsWindow::init_type(), and register_type(). Referenced by force_init_type(), and init_libglxdisplay().

void glxGraphicsWindow::make_current (   )  [virtual]

Reimplemented from GraphicsWindow. Definition at line 76 of file glxGraphicsWindow.cxx. References glxGraphicsStateGuardian::_context, _display, _xwindow, DCAST_INTO_V, and GraphicsStateGuardian::reset_if_new(). Referenced by begin_flip().

bool glxGraphicsWindow::open_window (   )  [protected, virtual]

Reimplemented from GraphicsWindow. Definition at line 370 of file glxGraphicsWindow.cxx. References _colormap, _display, _event_mask, GraphicsWindow::_properties, _screen, glxGraphicsStateGuardian::_visual, _xwindow, DCAST_INTO_R, WindowProperties::get_fullscreen(), glxGraphicsPipe::get_root(), WindowProperties::get_x_origin(), WindowProperties::get_x_size(), WindowProperties::get_y_origin(), WindowProperties::get_y_size(), WindowProperties::has_origin(), WindowProperties::has_size(), WindowProperties::set_origin(), WindowProperties::set_size(), set_wm_properties(), and setup_colormap().

void glxGraphicsWindow::process_events (   )  [virtual]

Reimplemented from GraphicsWindow. Definition at line 156 of file glxGraphicsWindow.cxx. References _awaiting_configure, _display, GraphicsWindow::_input_devices, _wm_delete_window, _xwindow, check_event(), close_window(), get_button(), index, ButtonHandle::none(), GraphicsWindow::process_events(), release_gsg(), WindowProperties::set_foreground(), WindowProperties::set_minimized(), WindowProperties::set_open(), WindowProperties::set_size(), and GraphicsWindow::system_changed_properties().

void glxGraphicsWindow::release_gsg (   )  [virtual]

Reimplemented from GraphicsWindow. Definition at line 98 of file glxGraphicsWindow.cxx. References _display, None, NULL, and GraphicsWindow::release_gsg(). Referenced by process_events().

void glxGraphicsWindow::set_properties_now (  WindowProperties &  properties  )  [virtual]

Reimplemented from GraphicsWindow. Definition at line 296 of file glxGraphicsWindow.cxx. References _awaiting_configure, _display, GraphicsWindow::_properties, _xwindow, WindowProperties::clear_origin(), WindowProperties::clear_size(), WindowProperties::clear_title(), WindowProperties::get_title(), WindowProperties::get_x_origin(), WindowProperties::get_x_size(), WindowProperties::get_y_origin(), WindowProperties::get_y_size(), WindowProperties::has_origin(), WindowProperties::has_size(), WindowProperties::has_title(), WindowProperties::is_any_specified(), GraphicsWindow::set_properties_now(), WindowProperties::set_title(), and set_wm_properties().

void glxGraphicsWindow::set_wm_properties (  const WindowProperties &  properties  )  [private]

Definition at line 440 of file glxGraphicsWindow.cxx. References _display, _wm_delete_window, _xwindow, WindowProperties::get_minimized(), WindowProperties::get_title(), WindowProperties::get_undecorated(), WindowProperties::get_x_origin(), WindowProperties::get_x_size(), WindowProperties::get_y_origin(), WindowProperties::get_y_size(), WindowProperties::has_minimized(), WindowProperties::has_origin(), WindowProperties::has_size(), WindowProperties::has_title(), and NULL. Referenced by open_window(), and set_properties_now().

void glxGraphicsWindow::setup_colormap (  XVisualInfo *  visual  )  [private]

Definition at line 526 of file glxGraphicsWindow.cxx. References _colormap, _display, DCAST_INTO_V, and glxGraphicsPipe::get_root(). Referenced by open_window().

---

Member Data Documentation

bool glxGraphicsWindow::_awaiting_configure [private]

Definition at line 69 of file glxGraphicsWindow.h. Referenced by glxGraphicsWindow(), process_events(), and set_properties_now().

Colormap glxGraphicsWindow::_colormap [private]

Definition at line 67 of file glxGraphicsWindow.h. Referenced by open_window(), and setup_colormap().

Display* glxGraphicsWindow::_display [private]

Definition at line 64 of file glxGraphicsWindow.h. Referenced by begin_flip(), close_window(), glxGraphicsWindow(), make_current(), open_window(), process_events(), release_gsg(), set_properties_now(), set_wm_properties(), and setup_colormap().

long glxGraphicsWindow::_event_mask [private]

Definition at line 68 of file glxGraphicsWindow.h. Referenced by open_window().

int glxGraphicsWindow::_screen [private]

Definition at line 65 of file glxGraphicsWindow.h. Referenced by glxGraphicsWindow(), and open_window().

TypeHandle glxGraphicsWindow::_type_handle [static, private]

Reimplemented from GraphicsWindow. Definition at line 35 of file glxGraphicsWindow.cxx. Referenced by get_class_type(), and init_type().

Atom glxGraphicsWindow::_wm_delete_window [private]

Definition at line 70 of file glxGraphicsWindow.h. Referenced by glxGraphicsWindow(), process_events(), and set_wm_properties().

Window glxGraphicsWindow::_xwindow [private]

Definition at line 66 of file glxGraphicsWindow.h. Referenced by begin_flip(), check_event(), close_window(), glxGraphicsWindow(), make_current(), open_window(), process_events(), set_properties_now(), and set_wm_properties().

---

The documentation for this class was generated from the following files:

• glxGraphicsWindow.h
• glxGraphicsWindow.cxx

---
