TransparencyAttrib Class Reference

#include <transparencyAttrib.h>

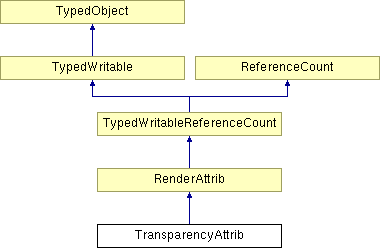

Inheritance diagram for TransparencyAttrib:

List of all members.

Public Member Functions
virtual void	issue (GraphicsStateGuardianBase *gsg) const
virtual void	output (ostream &out) const
virtual void	write_datagram (BamWriter *manager, Datagram &dg)
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
void	register_with_read_factory ()
TypeHandle	get_class_type ()
void	init_type ()
Protected Member Functions
virtual int	compare_to_impl (const RenderAttrib *other) const
virtual RenderAttrib *	make_default_impl () const
void	fillin (DatagramIterator &scan, BamReader *manager)
Static Protected Member Functions
TypedWritable *	make_from_bam (const FactoryParams &params)
Private Member Functions
INLINE	TransparencyAttrib (Mode mode=M_none)
INLINE Mode	get_mode () const
Private Attributes
PUBLISHED	__pad0__: enum Mode { M_none
PUBLISHED	M_alpha
PUBLISHED	M_alpha_sorted
PUBLISHED	M_multisample
PUBLISHED	M_multisample_mask
PUBLISHED	M_binary
PUBLISHED	M_dual
PUBLISHED	__pad1__: static CPT(RenderAttrib) make(Mode mode)
Mode	_mode
Static Private Attributes
TypeHandle	_type_handle

---

Constructor & Destructor Documentation

INLINE TransparencyAttrib::TransparencyAttrib (  Mode  mode = M_none  )  [private]

---

Member Function Documentation

int TransparencyAttrib::compare_to_impl (  const RenderAttrib *  other  )  const [protected, virtual]

Reimplemented from RenderAttrib. Definition at line 109 of file transparencyAttrib.cxx. References _mode, and DCAST_INTO_R.

void TransparencyAttrib::fillin (  DatagramIterator &  scan, BamReader *  manager )  [protected]

Reimplemented from RenderAttrib. Definition at line 183 of file transparencyAttrib.cxx. References _mode, RenderAttrib::fillin(), and DatagramIterator::get_int8(). Referenced by make_from_bam().

virtual TypeHandle TransparencyAttrib::force_init_type (  void   )  [inline, virtual]

Reimplemented from RenderAttrib. Definition at line 89 of file transparencyAttrib.h. References RenderAttrib::get_class_type(), and RenderAttrib::init_type().

TypeHandle TransparencyAttrib::get_class_type (  void   )  [inline, static]

Reimplemented from RenderAttrib. Definition at line 78 of file transparencyAttrib.h. Referenced by NodePath::clear_transparency(), RenderState::determine_transparency(), NodePath::get_transparency(), NodePath::has_transparency(), and register_with_read_factory().

INLINE Mode TransparencyAttrib::get_mode (   )  const [private]

Referenced by CullResult::add_object(), RenderState::determine_bin_index(), GLGraphicsStateGuardian::draw_sprite(), DXGraphicsStateGuardian8::draw_sprite(), DXGraphicsStateGuardian7::draw_sprite(), CRGraphicsStateGuardian::draw_sprite(), NodePath::get_transparency(), GraphicsStateGuardian::issue_transparency(), and output().

virtual TypeHandle TransparencyAttrib::get_type (  void   )  const [inline, virtual]

Reimplemented from RenderAttrib. Definition at line 86 of file transparencyAttrib.h. References RenderAttrib::get_class_type(). Referenced by output().

void TransparencyAttrib::init_type (  void   )  [inline, static]

Reimplemented from RenderAttrib. Definition at line 81 of file transparencyAttrib.h. References RenderAttrib::get_class_type(), RenderAttrib::init_type(), and register_type(). Referenced by init_libpgraph().

void TransparencyAttrib::issue (  GraphicsStateGuardianBase *  gsg  )  const [virtual]

Reimplemented from RenderAttrib. Definition at line 50 of file transparencyAttrib.cxx. References GraphicsStateGuardianBase::issue_transparency().

RenderAttrib * TransparencyAttrib::make_default_impl (   )  const [protected, virtual]

Implements RenderAttrib. Definition at line 127 of file transparencyAttrib.cxx.

TypedWritable * TransparencyAttrib::make_from_bam (  const FactoryParams &  params  )  [static, protected]

Definition at line 164 of file transparencyAttrib.cxx. References fillin(), params, and parse_params(). Referenced by register_with_read_factory().

void TransparencyAttrib::output (  ostream &  out  )  const [virtual]

Definition at line 60 of file transparencyAttrib.cxx. References get_mode(), get_type(), M_alpha, M_alpha_sorted, M_binary, M_dual, M_multisample, M_multisample_mask, and RenderAttrib::M_none.

void TransparencyAttrib::register_with_read_factory (   )  [static]

Definition at line 138 of file transparencyAttrib.cxx. References get_class_type(), BamReader::get_factory(), make_from_bam(), and Factory< TypedWritable >::register_factory(). Referenced by init_libpgraph().

void TransparencyAttrib::write_datagram (  BamWriter *  manager, Datagram &  dg )  [virtual]

Reimplemented from RenderAttrib. Definition at line 149 of file transparencyAttrib.cxx. References _mode, Datagram::add_int8(), and RenderAttrib::write_datagram().

---

Member Data Documentation

PUBLISHED TransparencyAttrib::__pad0__ [private]

Reimplemented from RenderAttrib. Definition at line 41 of file transparencyAttrib.h.

PUBLISHED TransparencyAttrib::__pad1__ [private]

Definition at line 54 of file transparencyAttrib.h.

Mode TransparencyAttrib::_mode [private]

Definition at line 67 of file transparencyAttrib.h. Referenced by compare_to_impl(), fillin(), and write_datagram().

TypeHandle TransparencyAttrib::_type_handle [static, private]

Reimplemented from RenderAttrib. Definition at line 27 of file transparencyAttrib.cxx.

PUBLISHED TransparencyAttrib::M_alpha [private]

Definition at line 41 of file transparencyAttrib.h. Referenced by CPT(), RenderState::determine_bin_index(), BaseParticleRenderer::enable_alpha(), PGFrameStyle::generate_into(), output(), DXGraphicsStateGuardian7::prepare_texture(), PT(), GLGraphicsStateGuardian::set_blend_mode(), DXGraphicsStateGuardian8::set_blend_mode(), CRGraphicsStateGuardian::set_blend_mode(), NodePath::set_transparency(), and EggLoader::setup_bucket().

PUBLISHED TransparencyAttrib::M_alpha_sorted [private]

Definition at line 41 of file transparencyAttrib.h. Referenced by RenderState::determine_bin_index(), output(), DXGraphicsStateGuardian7::prepare_texture(), GLGraphicsStateGuardian::set_blend_mode(), DXGraphicsStateGuardian8::set_blend_mode(), and CRGraphicsStateGuardian::set_blend_mode().

PUBLISHED TransparencyAttrib::M_binary [private]

Definition at line 41 of file transparencyAttrib.h. Referenced by CullResult::add_object(), output(), DXGraphicsStateGuardian7::prepare_texture(), GLGraphicsStateGuardian::set_blend_mode(), DXGraphicsStateGuardian8::set_blend_mode(), CRGraphicsStateGuardian::set_blend_mode(), and EggLoader::setup_bucket().

PUBLISHED TransparencyAttrib::M_dual [private]

Definition at line 41 of file transparencyAttrib.h. Referenced by CullResult::add_object(), RenderState::determine_bin_index(), output(), DXGraphicsStateGuardian7::prepare_texture(), GLGraphicsStateGuardian::set_blend_mode(), DXGraphicsStateGuardian8::set_blend_mode(), and EggLoader::setup_bucket().

PUBLISHED TransparencyAttrib::M_multisample [private]

Definition at line 41 of file transparencyAttrib.h. Referenced by output(), DXGraphicsStateGuardian7::prepare_texture(), GLGraphicsStateGuardian::set_blend_mode(), DXGraphicsStateGuardian8::set_blend_mode(), CRGraphicsStateGuardian::set_blend_mode(), and EggLoader::setup_bucket().

PUBLISHED TransparencyAttrib::M_multisample_mask [private]

Definition at line 41 of file transparencyAttrib.h. Referenced by output(), DXGraphicsStateGuardian7::prepare_texture(), GLGraphicsStateGuardian::set_blend_mode(), DXGraphicsStateGuardian8::set_blend_mode(), CRGraphicsStateGuardian::set_blend_mode(), and EggLoader::setup_bucket().

---

The documentation for this class was generated from the following files:

• transparencyAttrib.h
• transparencyAttrib.cxx

---
