GraphicsEngine::RenderThread Class Reference

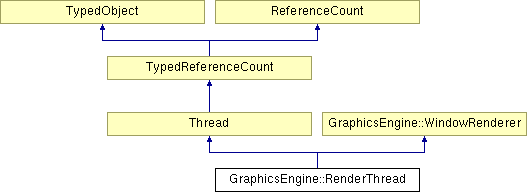

Inheritance diagram for GraphicsEngine::RenderThread:

List of all members.

Public Member Functions
	RenderThread (const string &name, GraphicsEngine *engine)
virtual void	thread_main ()
Public Attributes
GraphicsEngine *	_engine
Mutex	_cv_mutex
ConditionVar	_cv
ThreadState	_thread_state

---

Constructor & Destructor Documentation

GraphicsEngine::RenderThread::RenderThread (  const string &  name, GraphicsEngine *  engine )

Definition at line 1146 of file graphicsEngine.cxx. References _thread_state.

---

Member Function Documentation

void GraphicsEngine::RenderThread::thread_main (   )  [virtual]

Implements Thread. Definition at line 1162 of file graphicsEngine.cxx. References _cv, _cv_mutex, _engine, _thread_state, GraphicsEngine::WindowRenderer::do_close(), GraphicsEngine::WindowRenderer::do_flip(), GraphicsEngine::WindowRenderer::do_frame(), GraphicsEngine::WindowRenderer::do_pending(), GraphicsEngine::WindowRenderer::do_release(), and ConditionVar::wait().

---

Member Data Documentation

ConditionVar GraphicsEngine::RenderThread::_cv

Definition at line 157 of file graphicsEngine.h. Referenced by GraphicsEngine::do_flip_frame(), GraphicsEngine::render_frame(), GraphicsEngine::terminate_threads(), and thread_main().

Mutex GraphicsEngine::RenderThread::_cv_mutex

Definition at line 156 of file graphicsEngine.h. Referenced by GraphicsEngine::do_flip_frame(), GraphicsEngine::do_sync_frame(), GraphicsEngine::render_frame(), GraphicsEngine::terminate_threads(), and thread_main().

GraphicsEngine* GraphicsEngine::RenderThread::_engine

Definition at line 155 of file graphicsEngine.h. Referenced by thread_main().

ThreadState GraphicsEngine::RenderThread::_thread_state

Definition at line 158 of file graphicsEngine.h. Referenced by GraphicsEngine::do_flip_frame(), GraphicsEngine::render_frame(), RenderThread(), GraphicsEngine::terminate_threads(), and thread_main().

---

The documentation for this class was generated from the following files:

• graphicsEngine.h
• graphicsEngine.cxx

---
