CompassEffect Class Reference

#include <compassEffect.h>

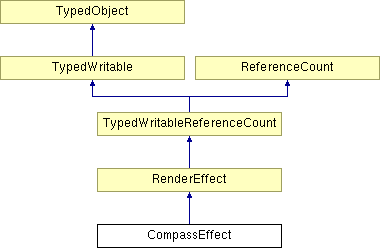

Inheritance diagram for CompassEffect:

List of all members.

Public Member Functions
virtual bool	safe_to_transform () const
virtual void	output (ostream &out) const
	CPT (TransformState) do_compass(const TransformState *net_transform
virtual void	write_datagram (BamWriter *manager, Datagram &dg)
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
void	register_with_read_factory ()
TypeHandle	get_class_type ()
void	init_type ()
Public Attributes
const TransformState *node_transform	const
Protected Member Functions
virtual int	compare_to_impl (const RenderEffect *other) const
void	fillin (DatagramIterator &scan, BamReader *manager)
Static Protected Member Functions
TypedWritable *	make_from_bam (const FactoryParams &params)
Private Member Functions
INLINE	CompassEffect ()
INLINE const NodePath &	get_reference () const
INLINE int	get_properties () const
Static Private Member Functions
	CPT (RenderEffect) make(const NodePath &reference
Private Attributes
PUBLISHED	__pad0__: enum Properties { P_x = 0x001
PUBLISHED	P_y = 0x002
PUBLISHED	P_z = 0x004
PUBLISHED	P_pos = 0x007
PUBLISHED	P_rot = 0x008
PUBLISHED	P_sx = 0x010
PUBLISHED	P_sy = 0x020
PUBLISHED	P_sz = 0x040
PUBLISHED	P_scale = 0x070
PUBLISHED	P_all = 0x07f
int	properties = P_rot)
NodePath	_reference
int	_properties
Static Private Attributes
TypeHandle	_type_handle

---

Constructor & Destructor Documentation

INLINE CompassEffect::CompassEffect (   )  [private]

---

Member Function Documentation

int CompassEffect::compare_to_impl (  const RenderEffect *  other  )  const [protected, virtual]

Reimplemented from RenderEffect. Definition at line 216 of file compassEffect.cxx. References _properties, _reference, NodePath::compare_to(), and DCAST_INTO_R.

CompassEffect::CPT (  TransformState   )  const

CompassEffect::CPT (  RenderEffect   )  const [static, private, virtual]

Reimplemented from RenderEffect.

void CompassEffect::fillin (  DatagramIterator &  scan, BamReader *  manager )  [protected]

Reimplemented from RenderEffect. Definition at line 283 of file compassEffect.cxx. References _properties, RenderEffect::fillin(), and DatagramIterator::get_uint16(). Referenced by make_from_bam().

virtual TypeHandle CompassEffect::force_init_type (  void   )  [inline, virtual]

Reimplemented from RenderEffect. Definition at line 116 of file compassEffect.h. References RenderEffect::get_class_type(), and RenderEffect::init_type().

TypeHandle CompassEffect::get_class_type (  void   )  [inline, static]

Reimplemented from RenderEffect. Definition at line 105 of file compassEffect.h. Referenced by NodePath::clear_compass(), RenderEffects::determine_compass(), NodePath::has_compass(), and register_with_read_factory().

INLINE int CompassEffect::get_properties (   )  const [private]

INLINE const NodePath& CompassEffect::get_reference (   )  const [private]

virtual TypeHandle CompassEffect::get_type (  void   )  const [inline, virtual]

Reimplemented from RenderEffect. Definition at line 113 of file compassEffect.h. References RenderEffect::get_class_type(). Referenced by output().

void CompassEffect::init_type (  void   )  [inline, static]

Reimplemented from RenderEffect. Definition at line 108 of file compassEffect.h. References RenderEffect::get_class_type(), RenderEffect::init_type(), and register_type(). Referenced by init_libpgraph().

TypedWritable * CompassEffect::make_from_bam (  const FactoryParams &  params  )  [static, protected]

Definition at line 264 of file compassEffect.cxx. References fillin(), params, and parse_params(). Referenced by register_with_read_factory().

void CompassEffect::output (  ostream &  out  )  const [virtual]

Definition at line 66 of file compassEffect.cxx. References _properties, _reference, get_type(), NodePath::is_empty(), P_pos, P_rot, P_scale, P_sx, P_sy, P_sz, P_y, and P_z.

void CompassEffect::register_with_read_factory (   )  [static]

Definition at line 237 of file compassEffect.cxx. References get_class_type(), BamReader::get_factory(), make_from_bam(), and Factory< TypedWritable >::register_factory(). Referenced by init_libpgraph().

bool CompassEffect::safe_to_transform (   )  const [virtual]

Reimplemented from RenderEffect. Definition at line 56 of file compassEffect.cxx.

void CompassEffect::write_datagram (  BamWriter *  manager, Datagram &  dg )  [virtual]

Reimplemented from RenderEffect. Definition at line 248 of file compassEffect.cxx. References _properties, Datagram::add_uint16(), and RenderEffect::write_datagram().

---

Member Data Documentation

PUBLISHED CompassEffect::__pad0__ [private]

Reimplemented from RenderEffect. Definition at line 65 of file compassEffect.h.

int CompassEffect::_properties [private]

Definition at line 94 of file compassEffect.h. Referenced by compare_to_impl(), CPT(), fillin(), output(), and write_datagram().

NodePath CompassEffect::_reference [private]

Definition at line 93 of file compassEffect.h. Referenced by compare_to_impl(), CPT(), and output().

TypeHandle CompassEffect::_type_handle [static, private]

Reimplemented from RenderEffect. Definition at line 27 of file compassEffect.cxx.

const TransformState* node_transform CompassEffect::const

Definition at line 87 of file compassEffect.h.

PUBLISHED CompassEffect::P_all = 0x07f [private]

Definition at line 74 of file compassEffect.h.

PUBLISHED CompassEffect::P_pos = 0x007 [private]

Definition at line 68 of file compassEffect.h. Referenced by output().

PUBLISHED CompassEffect::P_rot = 0x008 [private]

Definition at line 69 of file compassEffect.h. Referenced by output().

PUBLISHED CompassEffect::P_scale = 0x070 [private]

Definition at line 73 of file compassEffect.h. Referenced by output().

PUBLISHED CompassEffect::P_sx = 0x010 [private]

Definition at line 70 of file compassEffect.h. Referenced by output().

PUBLISHED CompassEffect::P_sy = 0x020 [private]

Definition at line 71 of file compassEffect.h. Referenced by output().

PUBLISHED CompassEffect::P_sz = 0x040 [private]

Definition at line 72 of file compassEffect.h. Referenced by output().

PUBLISHED CompassEffect::P_y = 0x002 [private]

Definition at line 66 of file compassEffect.h. Referenced by output().

PUBLISHED CompassEffect::P_z = 0x004 [private]

Definition at line 67 of file compassEffect.h. Referenced by output().

int CompassEffect::properties = P_rot) [private]

Definition at line 77 of file compassEffect.h.

---

The documentation for this class was generated from the following files:

• compassEffect.h
• compassEffect.cxx

---
