ClassicNurbsCurve Class Reference

#include <classicNurbsCurve.h>

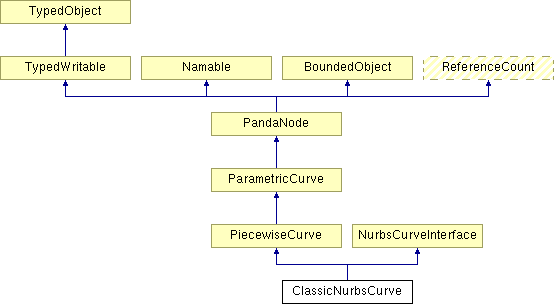

Inheritance diagram for ClassicNurbsCurve:


Public Member Functions
	ClassicNurbsCurve (int order, int num_cvs, const float knots[], const LVecBase4f cvs[])
virtual void	set_order (int order)
virtual int	get_order () const
virtual int	get_num_cvs () const
virtual int	get_num_knots () const
virtual bool	insert_cv (float t)
virtual bool	remove_cv (int n)
virtual void	remove_all_cvs ()
virtual bool	set_cv (int n, const LVecBase4f &v)
virtual LVecBase4f	get_cv (int n) const
virtual bool	set_knot (int n, float t)
virtual float	get_knot (int n) const
virtual bool	recompute ()
virtual bool	rebuild_curveseg (int rtype0, float t0, const LVecBase4f &v0, int rtype1, float t1, const LVecBase4f &v1, int rtype2, float t2, const LVecBase4f &v2, int rtype3, float t3, const LVecBase4f &v3)
virtual bool	stitch (const ParametricCurve a, const ParametricCurve b)
INLINE CubicCurveseg *	get_curveseg (int ti)
virtual NurbsCurveInterface *	get_nurbs_interface ()
virtual bool	convert_to_nurbs (ParametricCurve *nc) const
virtual void	write (ostream &out, int indent_level=0) const
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
void	register_with_read_factory ()
TypeHandle	get_class_type ()
void	init_type ()
Public Attributes
PUBLISHED	__pad1__: virtual ~ClassicNurbsCurve()
Protected Member Functions
virtual int	append_cv_impl (const LVecBase4f &v)
virtual bool	format_egg (ostream &out, const string &name, const string &curve_type, int indent_level) const
int	find_cv (float t)
virtual void	write_datagram (BamWriter *manager, Datagram &me)
void	fillin (DatagramIterator &scan, BamReader *manager)
Static Protected Member Functions
TypedWritable *	make_ClassicNurbsCurve (const FactoryParams &params)
Protected Attributes
int	_order
pvector< CV >	_cvs
Private Member Functions
	ClassicNurbsCurve (const ParametricCurve &pc)
Private Attributes
PUBLISHED	__pad0__: ClassicNurbsCurve()
Static Private Attributes
TypeHandle	_type_handle
TypeHandle	_orig_type_handle

Constructor & Destructor Documentation

ClassicNurbsCurve::ClassicNurbsCurve ( const ParametricCurve & pc ) [private]

Definition at line 57 of file classicNurbsCurve.cxx.
References _order, and ParametricCurve::convert_to_nurbs().
Referenced by stitch().

ClassicNurbsCurve::ClassicNurbsCurve ( int order,

int num_cvs,

const float knots[],

const LVecBase4f cvs[]

)

Definition at line 73 of file classicNurbsCurve.cxx.
References _cvs, _order, NurbsCurveInterface::append_cv(), recompute(), and set_knot().

Member Function Documentation

int ClassicNurbsCurve::append_cv_impl ( const LVecBase4f & v ) [protected, virtual]

Implements NurbsCurveInterface.
Definition at line 516 of file classicNurbsCurve.cxx.
References _cvs, get_knot(), and v.

bool ClassicNurbsCurve::convert_to_nurbs ( ParametricCurve * nc ) const [virtual]

Reimplemented from NurbsCurveInterface.
Definition at line 493 of file classicNurbsCurve.cxx.
References ParametricCurve::_curve_type, NurbsCurveInterface::convert_to_nurbs(), and ParametricCurve::set_curve_type().

void ClassicNurbsCurve::fillin ( DatagramIterator & scan,

BamReader * manager

) [protected]

Reimplemented from PiecewiseCurve.
Definition at line 610 of file classicNurbsCurve.cxx.
References _cvs, _order, ClassicNurbsCurve::CV::_p, ClassicNurbsCurve::CV::_t, PiecewiseCurve::fillin(), DatagramIterator::get_float64(), DatagramIterator::get_int8(), and DatagramIterator::get_uint32().
Referenced by make_ClassicNurbsCurve().

int ClassicNurbsCurve::find_cv ( float t ) [protected]

Definition at line 541 of file classicNurbsCurve.cxx.
References _cvs, _order, and t.
Referenced by insert_cv().

virtual TypeHandle ClassicNurbsCurve::force_init_type ( void ) [inline, virtual]

Reimplemented from PiecewiseCurve.
Definition at line 144 of file classicNurbsCurve.h.
References NurbsCurveInterface::get_class_type(), and NurbsCurveInterface::init_type().

bool ClassicNurbsCurve::format_egg ( ostream & out,

const string & name,

const string & curve_type,

int indent_level

) const [protected, virtual]

Reimplemented from NurbsCurveInterface.
Definition at line 529 of file classicNurbsCurve.cxx.
References NurbsCurveInterface::format_egg().

TypeHandle ClassicNurbsCurve::get_class_type ( void ) [inline, static]

Reimplemented from NurbsCurveInterface.
Definition at line 128 of file classicNurbsCurve.h.
Referenced by register_with_read_factory().

INLINE CubicCurveseg* ClassicNurbsCurve::get_curveseg ( int ti )

Reimplemented from PiecewiseCurve.

LVecBase4f ClassicNurbsCurve::get_cv ( int n ) const [virtual]

Implements NurbsCurveInterface.
Definition at line 257 of file classicNurbsCurve.cxx.
References _cvs, get_num_cvs(), and n.

float ClassicNurbsCurve::get_knot ( int n ) const [virtual]

Implements NurbsCurveInterface.
Definition at line 290 of file classicNurbsCurve.cxx.
References _cvs, _order, and n.
Referenced by append_cv_impl(), insert_cv(), rebuild_curveseg(), and recompute().

int ClassicNurbsCurve::get_num_cvs ( ) const [virtual]

Implements NurbsCurveInterface.
Definition at line 131 of file classicNurbsCurve.cxx.
References _cvs.
Referenced by get_cv(), and set_cv().

int ClassicNurbsCurve::get_num_knots ( ) const [virtual]

Implements NurbsCurveInterface.
Definition at line 141 of file classicNurbsCurve.cxx.
References _cvs, and _order.
Referenced by set_knot().

NurbsCurveInterface * ClassicNurbsCurve::get_nurbs_interface ( ) [virtual]

Reimplemented from ParametricCurve.
Definition at line 481 of file classicNurbsCurve.cxx.

int ClassicNurbsCurve::get_order ( ) const [virtual]

Implements NurbsCurveInterface.
Definition at line 121 of file classicNurbsCurve.cxx.
References _order.

virtual TypeHandle ClassicNurbsCurve::get_type ( void ) const [inline, virtual]

Reimplemented from PiecewiseCurve.
Definition at line 141 of file classicNurbsCurve.h.
References NurbsCurveInterface::get_class_type().

void ClassicNurbsCurve::init_type ( void ) [inline, static]

Reimplemented from NurbsCurveInterface.
Definition at line 131 of file classicNurbsCurve.h.
References NurbsCurveInterface::get_class_type(), PiecewiseCurve::get_class_type(), NurbsCurveInterface::init_type(), PiecewiseCurve::init_type(), and register_type().
Referenced by ConfigureFn().

bool ClassicNurbsCurve::insert_cv ( float t ) [virtual]

Implements NurbsCurveInterface.
Definition at line 158 of file classicNurbsCurve.cxx.
References _cvs, _order, a, NurbsCurveInterface::append_cv(), find_cv(), get_knot(), and t.

TypedWritable * ClassicNurbsCurve::make_ClassicNurbsCurve ( const FactoryParams & params ) [static, protected]

Definition at line 570 of file classicNurbsCurve.cxx.
References fillin(), params, and parse_params().
Referenced by register_with_read_factory().

bool ClassicNurbsCurve::rebuild_curveseg ( int rtype0,

float t0,

const LVecBase4f & v0,

int rtype1,

float t1,

const LVecBase4f & v1,

int rtype2,

float t2,

const LVecBase4f & v2,

int rtype3,

float t3,

const LVecBase4f & v3

) [virtual]

Reimplemented from PiecewiseCurve.
Definition at line 351 of file classicNurbsCurve.cxx.
References _cvs, PiecewiseCurve::_last_ti, _order, c, compute_nurbs_basis(), CubicCurveseg::compute_seg(), get_knot(), invert, RT_KEEP_ORIG, and s.

bool ClassicNurbsCurve::recompute ( ) [virtual]

Reimplemented from ParametricCurve.
Definition at line 312 of file classicNurbsCurve.cxx.
References _cvs, _order, PiecewiseCurve::_segs, c, get_knot(), and PiecewiseCurve::insert_curveseg().
Referenced by ClassicNurbsCurve(), and stitch().

void ClassicNurbsCurve::register_with_read_factory ( ) [static]

Reimplemented from PandaNode.
Definition at line 559 of file classicNurbsCurve.cxx.
References _orig_type_handle, get_class_type(), BamReader::get_factory(), make_ClassicNurbsCurve(), and Factory< TypedWritable >::register_factory().
Referenced by ConfigureFn().

void ClassicNurbsCurve::remove_all_cvs ( ) [virtual]

Implements NurbsCurveInterface.
Definition at line 231 of file classicNurbsCurve.cxx.
References _cvs.

bool ClassicNurbsCurve::remove_cv ( int n ) [virtual]

Implements NurbsCurveInterface.
Definition at line 216 of file classicNurbsCurve.cxx.
References _cvs, and n.

bool ClassicNurbsCurve::set_cv ( int n,

const LVecBase4f & v

) [virtual]

Implements NurbsCurveInterface.
Definition at line 243 of file classicNurbsCurve.cxx.
References _cvs, get_num_cvs(), n, and v.

bool ClassicNurbsCurve::set_knot ( int n,

float t

) [virtual]

Implements NurbsCurveInterface.
Definition at line 274 of file classicNurbsCurve.cxx.
References _cvs, _order, get_num_knots(), n, and t.
Referenced by ClassicNurbsCurve().

void ClassicNurbsCurve::set_order ( int order ) [virtual]

Definition at line 108 of file classicNurbsCurve.cxx.
References _cvs, and _order.

bool ClassicNurbsCurve::stitch ( const ParametricCurve * a,

const ParametricCurve * b

) [virtual]

Reimplemented from ParametricCurve.
Definition at line 426 of file classicNurbsCurve.cxx.
References _cvs, ClassicNurbsCurve::CV::_t, a, b, ClassicNurbsCurve(), PandaNode::PT(), recompute(), and t.

void ClassicNurbsCurve::write ( ostream & out,

int indent_level = 0

) const [virtual]

Reimplemented from NurbsCurveInterface.
Definition at line 504 of file classicNurbsCurve.cxx.
References NurbsCurveInterface::write().

void ClassicNurbsCurve::write_datagram ( BamWriter * manager,

Datagram & me

) [protected, virtual]

Reimplemented from PiecewiseCurve.
Definition at line 587 of file classicNurbsCurve.cxx.
References _cvs, _order, ClassicNurbsCurve::CV::_p, ClassicNurbsCurve::CV::_t, Datagram::add_float64(), Datagram::add_int8(), Datagram::add_uint32(), and PiecewiseCurve::write_datagram().

Member Data Documentation

PUBLISHED ClassicNurbsCurve::__pad0__ [private]

Reimplemented from NurbsCurveInterface.
Definition at line 53 of file classicNurbsCurve.h.

PUBLISHED ClassicNurbsCurve::__pad1__

Reimplemented from ParametricCurve.
Definition at line 59 of file classicNurbsCurve.h.

pvector<CV> ClassicNurbsCurve::_cvs [protected]

Definition at line 115 of file classicNurbsCurve.h.
Referenced by append_cv_impl(), ClassicNurbsCurve(), fillin(), find_cv(), get_cv(), get_knot(), get_num_cvs(), get_num_knots(), insert_cv(), rebuild_curveseg(), recompute(), remove_all_cvs(), remove_cv(), set_cv(), set_knot(), set_order(), stitch(), and write_datagram().

int ClassicNurbsCurve::_order [protected]

Definition at line 105 of file classicNurbsCurve.h.
Referenced by ClassicNurbsCurve(), fillin(), find_cv(), get_knot(), get_num_knots(), get_order(), insert_cv(), rebuild_curveseg(), recompute(), set_knot(), set_order(), and write_datagram().

TypeHandle ClassicNurbsCurve::_orig_type_handle [static, private]

Definition at line 33 of file classicNurbsCurve.cxx.
Referenced by register_with_read_factory().

TypeHandle ClassicNurbsCurve::_type_handle [static, private]

Reimplemented from NurbsCurveInterface.
Definition at line 32 of file classicNurbsCurve.cxx.

The documentation for this class was generated from the following files:
