BoundingHexahedron Class Reference

#include <boundingHexahedron.h>

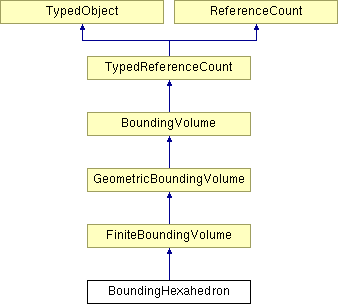

Inheritance diagram for BoundingHexahedron:


Public Member Functions
INLINE_MATHUTIL	BoundingHexahedron ()
	BoundingHexahedron (const Frustumf &frustum, bool is_ortho, CoordinateSystem cs=CS_default)
	BoundingHexahedron (const LPoint3f &fll, const LPoint3f &flr, const LPoint3f &fur, const LPoint3f &ful, const LPoint3f &nll, const LPoint3f &nlr, const LPoint3f &nur, const LPoint3f &nul)
virtual BoundingVolume *	make_copy () const
virtual LPoint3f	get_min () const
virtual LPoint3f	get_max () const
virtual LPoint3f	get_approx_center () const
virtual void	xform (const LMatrix4f &mat)
virtual void	output (ostream &out) const
virtual void	write (ostream &out, int indent_level=0) const
INLINE_MATHUTIL int	get_num_points () const
INLINE_MATHUTIL LPoint3f	get_point (int n) const
INLINE_MATHUTIL int	get_num_planes () const
INLINE_MATHUTIL Planef	get_plane (int n) const
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
TypeHandle	get_class_type ()
void	init_type ()
Protected Member Functions
virtual bool	extend_other (BoundingVolume *other) const
virtual bool	around_other (BoundingVolume other, const BoundingVolume first, const BoundingVolume *last) const
virtual int	contains_other (const BoundingVolume *other) const
virtual bool	extend_by_point (const LPoint3f &point)
virtual bool	extend_by_sphere (const BoundingSphere *sphere)
virtual bool	extend_by_hexahedron (const BoundingHexahedron *hexahedron)
virtual bool	around_points (const LPoint3f first, const LPoint3f last)
virtual bool	around_spheres (const BoundingVolume first, const BoundingVolume last)
virtual bool	around_hexahedrons (const BoundingVolume first, const BoundingVolume last)
virtual int	contains_point (const LPoint3f &point) const
virtual int	contains_lineseg (const LPoint3f &a, const LPoint3f &b) const
virtual int	contains_sphere (const BoundingSphere *sphere) const
virtual int	contains_hexahedron (const BoundingHexahedron *hexahedron) const
Private Types
enum	{ num_points = 8, num_planes = 6 }
Private Member Functions
void	set_planes ()
void	set_centroid ()
Private Attributes
LPoint3f	_points [num_points]
Planef	_planes [num_planes]
LPoint3f	_centroid
Static Private Attributes
TypeHandle	_type_handle
Friends
class	BoundingSphere

Member Enumeration Documentation

anonymous enum [private]

Enumeration values:

num_points

num_planes

Definition at line 95 of file boundingHexahedron.h.

Constructor & Destructor Documentation

INLINE_MATHUTIL BoundingHexahedron::BoundingHexahedron ( )

Referenced by make_copy().

BoundingHexahedron::BoundingHexahedron ( const Frustumf & frustum,

bool is_ortho,

CoordinateSystem cs = CS_default

)

Definition at line 29 of file boundingHexahedron.cxx.
References BoundingVolume::_flags, _points, cs, CS_default, CS_zup_right, default_coordinate_system, set_centroid(), set_planes(), and xform().

BoundingHexahedron::BoundingHexahedron ( const LPoint3f & fll,

const LPoint3f & flr,

const LPoint3f & fur,

const LPoint3f & ful,

const LPoint3f & nll,

const LPoint3f & nlr,

const LPoint3f & nur,

const LPoint3f & nul

)

Definition at line 64 of file boundingHexahedron.cxx.
References BoundingVolume::_flags, _points, set_centroid(), and set_planes().

Member Function Documentation

bool BoundingHexahedron::around_hexahedrons ( const BoundingVolume ** first,

const BoundingVolume ** last

) [protected, virtual]

Reimplemented from BoundingVolume.
Definition at line 216 of file boundingHexahedron.cxx.

bool BoundingHexahedron::around_other ( BoundingVolume * other,

const BoundingVolume ** first,

const BoundingVolume ** last

) const [protected, virtual]

Implements BoundingVolume.
Definition at line 167 of file boundingHexahedron.cxx.
References BoundingVolume::around_hexahedrons(), and first.

bool BoundingHexahedron::around_points ( const LPoint3f * first,

const LPoint3f * last

) [protected, virtual]

Reimplemented from GeometricBoundingVolume.
Definition at line 201 of file boundingHexahedron.cxx.

bool BoundingHexahedron::around_spheres ( const BoundingVolume ** first,

const BoundingVolume ** last

) [protected, virtual]

Reimplemented from BoundingVolume.
Definition at line 208 of file boundingHexahedron.cxx.

int BoundingHexahedron::contains_hexahedron ( const BoundingHexahedron * hexahedron ) const [protected, virtual]

Reimplemented from BoundingVolume.
Definition at line 301 of file boundingHexahedron.cxx.
References _points, contains_point(), get_max(), get_min(), BoundingVolume::is_empty(), and num_points.

int BoundingHexahedron::contains_lineseg ( const LPoint3f & a,

const LPoint3f & b

) const [protected, virtual]

Reimplemented from GeometricBoundingVolume.
Definition at line 245 of file boundingHexahedron.cxx.
References _planes, a, b, BoundingVolume::is_empty(), BoundingVolume::is_infinite(), num_planes, and p.

int BoundingHexahedron::contains_other ( const BoundingVolume * other ) const [protected, virtual]

Implements BoundingVolume.
Definition at line 174 of file boundingHexahedron.cxx.
References BoundingVolume::contains_hexahedron().

int BoundingHexahedron::contains_point ( const LPoint3f & point ) const [protected, virtual]

Reimplemented from GeometricBoundingVolume.
Definition at line 224 of file boundingHexahedron.cxx.
References _planes, BoundingVolume::is_empty(), BoundingVolume::is_infinite(), num_planes, and p.
Referenced by contains_hexahedron().

int BoundingHexahedron::contains_sphere ( const BoundingSphere * sphere ) const [protected, virtual]

Reimplemented from BoundingVolume.
Definition at line 271 of file boundingHexahedron.cxx.
References _planes, BoundingSphere::get_radius(), BoundingVolume::is_empty(), num_planes, and p.
Referenced by BoundingSphere::contains_hexahedron().

bool BoundingHexahedron::extend_by_hexahedron ( const BoundingHexahedron * hexahedron ) [protected, virtual]

Reimplemented from BoundingVolume.
Definition at line 194 of file boundingHexahedron.cxx.

bool BoundingHexahedron::extend_by_point ( const LPoint3f & point ) [protected, virtual]

Reimplemented from GeometricBoundingVolume.
Definition at line 180 of file boundingHexahedron.cxx.

bool BoundingHexahedron::extend_by_sphere ( const BoundingSphere * sphere ) [protected, virtual]

Reimplemented from BoundingVolume.
Definition at line 187 of file boundingHexahedron.cxx.

bool BoundingHexahedron::extend_other ( BoundingVolume * other ) const [protected, virtual]

Implements BoundingVolume.
Definition at line 162 of file boundingHexahedron.cxx.
References BoundingVolume::extend_by_hexahedron().

virtual TypeHandle BoundingHexahedron::force_init_type ( void ) [inline, virtual]

Reimplemented from FiniteBoundingVolume.
Definition at line 116 of file boundingHexahedron.h.
References FiniteBoundingVolume::get_class_type(), and FiniteBoundingVolume::init_type().

LPoint3f BoundingHexahedron::get_approx_center ( ) const [virtual]

Implements GeometricBoundingVolume.
Definition at line 116 of file boundingHexahedron.cxx.
References _centroid, BoundingVolume::is_empty(), and BoundingVolume::is_infinite().

TypeHandle BoundingHexahedron::get_class_type ( void ) [inline, static]

Reimplemented from FiniteBoundingVolume.
Definition at line 105 of file boundingHexahedron.h.

LPoint3f BoundingHexahedron::get_max ( ) const [virtual]

Implements FiniteBoundingVolume.
Definition at line 102 of file boundingHexahedron.cxx.
References _points, BoundingVolume::is_empty(), BoundingVolume::is_infinite(), and num_points.
Referenced by contains_hexahedron(), output(), and write().

LPoint3f BoundingHexahedron::get_min ( ) const [virtual]

Definition at line 88 of file boundingHexahedron.cxx.
References _points, BoundingVolume::is_empty(), BoundingVolume::is_infinite(), and num_points.
Referenced by contains_hexahedron(), output(), and write().

INLINE_MATHUTIL int BoundingHexahedron::get_num_planes ( ) const

INLINE_MATHUTIL int BoundingHexahedron::get_num_points ( ) const

INLINE_MATHUTIL Planef BoundingHexahedron::get_plane ( int n ) const

INLINE_MATHUTIL LPoint3f BoundingHexahedron::get_point ( int n ) const

virtual TypeHandle BoundingHexahedron::get_type ( void ) const [inline, virtual]

Reimplemented from FiniteBoundingVolume.
Definition at line 113 of file boundingHexahedron.h.
References FiniteBoundingVolume::get_class_type().

void BoundingHexahedron::init_type ( void ) [inline, static]

Reimplemented from FiniteBoundingVolume.
Definition at line 108 of file boundingHexahedron.h.
References FiniteBoundingVolume::get_class_type(), FiniteBoundingVolume::init_type(), and register_type().
Referenced by ConfigureFn().

BoundingVolume * BoundingHexahedron::make_copy ( ) const [virtual]

Implements BoundingVolume.
Definition at line 83 of file boundingHexahedron.cxx.
References BoundingHexahedron().

void BoundingHexahedron::output ( ostream & out ) const [virtual]

Implements BoundingVolume.
Definition at line 134 of file boundingHexahedron.cxx.
References get_max(), get_min(), BoundingVolume::is_empty(), and BoundingVolume::is_infinite().

void BoundingHexahedron::set_centroid ( ) [private]

Definition at line 362 of file boundingHexahedron.cxx.
References _centroid, _points, and num_points.
Referenced by BoundingHexahedron(), and xform().

void BoundingHexahedron::set_planes ( ) [private]

Definition at line 332 of file boundingHexahedron.cxx.
References _centroid, _planes, and _points.
Referenced by BoundingHexahedron(), and xform().

void BoundingHexahedron::write ( ostream & out,

int indent_level = 0

) const [virtual]

Reimplemented from BoundingVolume.
Definition at line 145 of file boundingHexahedron.cxx.
References _centroid, _points, get_max(), get_min(), indent(), BoundingVolume::is_empty(), BoundingVolume::is_infinite(), and num_points.

void BoundingHexahedron::xform ( const LMatrix4f & mat ) [virtual]

Implements GeometricBoundingVolume.
Definition at line 123 of file boundingHexahedron.cxx.
References _points, BoundingVolume::is_empty(), BoundingVolume::is_infinite(), num_points, set_centroid(), and set_planes().
Referenced by BoundingHexahedron().

Friends And Related Function Documentation

friend class BoundingSphere [friend]

Reimplemented from BoundingVolume.
Definition at line 121 of file boundingHexahedron.h.

Member Data Documentation

LPoint3f BoundingHexahedron::_centroid [private]

Definition at line 101 of file boundingHexahedron.h.
Referenced by get_approx_center(), set_centroid(), set_planes(), and write().

Planef BoundingHexahedron::_planes[num_planes] [private]

Definition at line 100 of file boundingHexahedron.h.
Referenced by contains_lineseg(), contains_point(), contains_sphere(), and set_planes().

LPoint3f BoundingHexahedron::_points[num_points] [private]

Definition at line 99 of file boundingHexahedron.h.
Referenced by BoundingHexahedron(), contains_hexahedron(), get_max(), get_min(), set_centroid(), set_planes(), write(), and xform().

TypeHandle BoundingHexahedron::_type_handle [static, private]

Reimplemented from FiniteBoundingVolume.
Definition at line 26 of file boundingHexahedron.cxx.

The documentation for this class was generated from the following files:
