FltTransformRotateAboutEdge Class Reference

#include <fltTransformRotateAboutEdge.h>

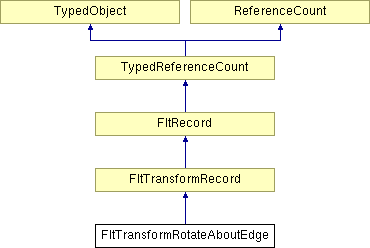

Inheritance diagram for FltTransformRotateAboutEdge:

List of all members.

Public Member Functions
	FltTransformRotateAboutEdge (FltHeader *header)
void	set (const LPoint3d &point_a, const LPoint3d &point_b, float angle)
const LPoint3d &	get_point_a () const
const LPoint3d &	get_point_b () const
float	get_angle () const
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
TypeHandle	get_class_type ()
void	init_type ()
Protected Member Functions
virtual bool	extract_record (FltRecordReader &reader)
virtual bool	build_record (FltRecordWriter &writer) const
Private Member Functions
void	recompute_matrix ()
Private Attributes
LPoint3d	_point_a
LPoint3d	_point_b
float	_angle
Static Private Attributes
TypeHandle	_type_handle

---

Constructor & Destructor Documentation

FltTransformRotateAboutEdge::FltTransformRotateAboutEdge (  FltHeader *  header  )

Definition at line 31 of file fltTransformRotateAboutEdge.cxx. References _angle, _point_a, and _point_b.

---

Member Function Documentation

bool FltTransformRotateAboutEdge::build_record (  FltRecordWriter &  writer  )  const [protected, virtual]

Reimplemented from FltRecord. Definition at line 146 of file fltTransformRotateAboutEdge.cxx. References _angle, _point_a, _point_b, Datagram::add_be_float32(), Datagram::add_be_float64(), FltRecord::build_record(), FO_rotate_about_edge, Datagram::pad_bytes(), and writer().

bool FltTransformRotateAboutEdge::extract_record (  FltRecordReader &  reader  )  [protected, virtual]

Reimplemented from FltRecord. Definition at line 111 of file fltTransformRotateAboutEdge.cxx. References _angle, _point_a, _point_b, FltRecord::check_remaining_size(), FltRecord::extract_record(), FO_rotate_about_edge, DatagramIterator::get_be_float32(), DatagramIterator::get_be_float64(), nassertr, reader(), recompute_matrix(), and DatagramIterator::skip_bytes().

virtual TypeHandle FltTransformRotateAboutEdge::force_init_type (  void   )  [inline, virtual]

Reimplemented from FltTransformRecord. Definition at line 56 of file fltTransformRotateAboutEdge.h. References get_class_type(), and init_type().

float FltTransformRotateAboutEdge::get_angle (   )  const

Definition at line 79 of file fltTransformRotateAboutEdge.cxx. References _angle. Referenced by FltToEggLevelState::set_transform().

TypeHandle FltTransformRotateAboutEdge::get_class_type (  void   )  [inline, static]

Reimplemented from FltTransformRecord. Definition at line 57 of file fltTransformRotateAboutEdge.h. References _type_handle. Referenced by force_init_type(), get_type(), and FltToEggLevelState::set_transform().

const LPoint3d & FltTransformRotateAboutEdge::get_point_a (   )  const

Definition at line 58 of file fltTransformRotateAboutEdge.cxx. References _point_a. Referenced by FltToEggLevelState::set_transform().

const LPoint3d & FltTransformRotateAboutEdge::get_point_b (   )  const

Definition at line 68 of file fltTransformRotateAboutEdge.cxx. References _point_b. Referenced by FltToEggLevelState::set_transform().

virtual TypeHandle FltTransformRotateAboutEdge::get_type (  void   )  const [inline, virtual]

Reimplemented from FltTransformRecord. Definition at line 53 of file fltTransformRotateAboutEdge.h. References get_class_type().

void FltTransformRotateAboutEdge::init_type (  void   )  [inline, static]

Reimplemented from FltTransformRecord. Definition at line 60 of file fltTransformRotateAboutEdge.h. References _type_handle, FltTransformRecord::get_class_type(), FltTransformRecord::init_type(), and register_type(). Referenced by force_init_type(), and init_libflt().

void FltTransformRotateAboutEdge::recompute_matrix (   )  [private]

Definition at line 89 of file fltTransformRotateAboutEdge.cxx. References _angle, FltTransformRecord::_matrix, _point_a, _point_b, and CS_zup_right. Referenced by extract_record(), and set().

void FltTransformRotateAboutEdge::set (  const LPoint3d &  point_a, const LPoint3d &  point_b, float  angle )

Definition at line 44 of file fltTransformRotateAboutEdge.cxx. References _angle, _point_a, _point_b, and recompute_matrix().

---

Member Data Documentation

float FltTransformRotateAboutEdge::_angle [private]

Definition at line 46 of file fltTransformRotateAboutEdge.h. Referenced by build_record(), extract_record(), FltTransformRotateAboutEdge(), get_angle(), recompute_matrix(), and set().

LPoint3d FltTransformRotateAboutEdge::_point_a [private]

Definition at line 44 of file fltTransformRotateAboutEdge.h. Referenced by build_record(), extract_record(), FltTransformRotateAboutEdge(), get_point_a(), recompute_matrix(), and set().

LPoint3d FltTransformRotateAboutEdge::_point_b [private]

Definition at line 45 of file fltTransformRotateAboutEdge.h. Referenced by build_record(), extract_record(), FltTransformRotateAboutEdge(), get_point_b(), recompute_matrix(), and set().

TypeHandle FltTransformRotateAboutEdge::_type_handle [static, private]

Reimplemented from FltTransformRecord. Definition at line 23 of file fltTransformRotateAboutEdge.cxx. Referenced by get_class_type(), and init_type().

---

The documentation for this class was generated from the following files:

• fltTransformRotateAboutEdge.h
• fltTransformRotateAboutEdge.cxx

---
