FltGroup Class Reference

#include <fltGroup.h>

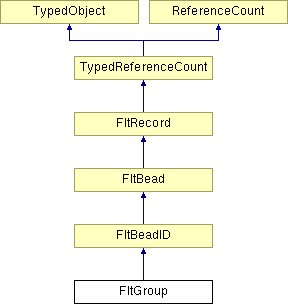

Inheritance diagram for FltGroup:

List of all members.

Public Types
enum	Flags {   F_forward_animation = 0x40000000, F_swing_animation = 0x20000000, F_bounding_box = 0x10000000, F_freeze_bounding_box = 0x08000000,   F_default_parent = 0x04000000 }
Public Member Functions
	FltGroup (FltHeader *header)
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
TypeHandle	get_class_type ()
void	init_type ()
Public Attributes
int	_relative_priority
unsigned int	_flags
int	_special_id1
int	_special_id2
int	_significance
int	_layer_id
Protected Member Functions
virtual bool	extract_record (FltRecordReader &reader)
virtual bool	build_record (FltRecordWriter &writer) const
Static Private Attributes
TypeHandle	_type_handle

---

Member Enumeration Documentation

enum FltGroup::Flags

Enumeration values: F_forward_animation  F_swing_animation  F_bounding_box  F_freeze_bounding_box  F_default_parent  Definition at line 34 of file fltGroup.h.

---

Constructor & Destructor Documentation

FltGroup::FltGroup (  FltHeader *  header  )

Definition at line 31 of file fltGroup.cxx. References _flags, _layer_id, _relative_priority, _significance, _special_id1, and _special_id2.

---

Member Function Documentation

bool FltGroup::build_record (  FltRecordWriter &  writer  )  const [protected, virtual]

Reimplemented from FltBeadID. Definition at line 82 of file fltGroup.cxx. References _flags, _layer_id, _relative_priority, _significance, _special_id1, _special_id2, Datagram::add_be_int16(), Datagram::add_be_uint32(), Datagram::add_int8(), FltBeadID::build_record(), FO_group, Datagram::pad_bytes(), and writer().

bool FltGroup::extract_record (  FltRecordReader &  reader  )  [protected, virtual]

Reimplemented from FltBeadID. Definition at line 49 of file fltGroup.cxx. References _flags, FltRecord::_header, _layer_id, _relative_priority, _significance, _special_id1, _special_id2, FltRecord::check_remaining_size(), FltBeadID::extract_record(), FO_group, DatagramIterator::get_be_int16(), DatagramIterator::get_be_uint32(), FltHeader::get_flt_version(), DatagramIterator::get_int8(), nassertr, reader(), and DatagramIterator::skip_bytes().

virtual TypeHandle FltGroup::force_init_type (  void   )  [inline, virtual]

Reimplemented from FltBeadID. Definition at line 56 of file fltGroup.h. References get_class_type(), and init_type().

TypeHandle FltGroup::get_class_type (  void   )  [inline, static]

Reimplemented from FltBeadID. Definition at line 57 of file fltGroup.h. References _type_handle. Referenced by FltToEggConverter::dispatch_record(), force_init_type(), and get_type().

virtual TypeHandle FltGroup::get_type (  void   )  const [inline, virtual]

Reimplemented from FltBeadID. Definition at line 53 of file fltGroup.h. References get_class_type().

void FltGroup::init_type (  void   )  [inline, static]

Reimplemented from FltBeadID. Definition at line 60 of file fltGroup.h. References _type_handle, FltBeadID::get_class_type(), FltBeadID::init_type(), and register_type(). Referenced by force_init_type(), and init_libflt().

---

Member Data Documentation

unsigned int FltGroup::_flags

Definition at line 43 of file fltGroup.h. Referenced by build_record(), FltToEggConverter::convert_group(), extract_record(), and FltGroup().

int FltGroup::_layer_id

Definition at line 46 of file fltGroup.h. Referenced by build_record(), extract_record(), and FltGroup().

int FltGroup::_relative_priority

Definition at line 42 of file fltGroup.h. Referenced by build_record(), extract_record(), and FltGroup().

int FltGroup::_significance

Definition at line 45 of file fltGroup.h. Referenced by build_record(), extract_record(), and FltGroup().

int FltGroup::_special_id1

Definition at line 44 of file fltGroup.h. Referenced by build_record(), extract_record(), and FltGroup().

int FltGroup::_special_id2

Definition at line 44 of file fltGroup.h. Referenced by build_record(), extract_record(), and FltGroup().

TypeHandle FltGroup::_type_handle [static, private]

Reimplemented from FltBeadID. Definition at line 23 of file fltGroup.cxx. Referenced by get_class_type(), and init_type().

---

The documentation for this class was generated from the following files:

• fltGroup.h
• fltGroup.cxx

---
