FltGeometry Class Reference

#include <fltGeometry.h>

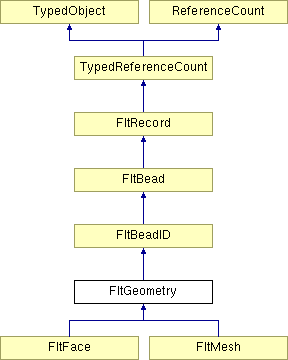

Inheritance diagram for FltGeometry:

List of all members.

Public Types
enum	DrawType {   DT_solid_backface = 0, DT_solid_no_backface = 1, DT_wireframe = 2, DT_wireframe_close = 3,   DT_wireframe_highlight = 4, DT_omni_light = 5, DT_uni_light = 6, DT_bi_light = 7 }
enum	BillboardType { BT_none = 0, BT_fixed = 1, BT_axial = 2, BT_point = 4 }
enum	Flags {   F_terrain = 0x80000000, F_no_color = 0x40000000, F_no_alt_color = 0x20000000, F_packed_color = 0x10000000,   F_terrain_footprint = 0x08000000, F_hidden = 0x04000000 }
enum	LightMode { LM_face_no_normal = 0, LM_vertex_no_normal = 1, LM_face_with_normal = 2, LM_vertex_with_normal = 3 }
Public Member Functions
	FltGeometry (FltHeader *header)
INLINE bool	has_texture () const
INLINE FltTexture *	get_texture () const
INLINE bool	has_material () const
INLINE FltMaterial *	get_material () const
INLINE bool	has_color () const
Colorf	get_color () const
RGBColorf	get_rgb () const
bool	has_alt_color () const
Colorf	get_alt_color () const
RGBColorf	get_alt_rgb () const
virtual TypeHandle	get_type () const
virtual TypeHandle	force_init_type ()
Static Public Member Functions
TypeHandle	get_class_type ()
void	init_type ()
Public Attributes
int	_ir_color
int	_relative_priority
DrawType	_draw_type
bool	_texwhite
int	_color_name_index
int	_alt_color_name_index
BillboardType	_billboard_type
int	_detail_texture_index
int	_texture_index
int	_material_index
int	_dfad_material_code
int	_dfad_feature_id
int	_ir_material_code
int	_transparency
int	_lod_generation_control
int	_line_style_index
unsigned int	_flags
LightMode	_light_mode
FltPackedColor	_packed_color
FltPackedColor	_alt_packed_color
int	_texture_mapping_index
int	_color_index
int	_alt_color_index
Protected Member Functions
virtual bool	extract_record (FltRecordReader &reader)
virtual bool	build_record (FltRecordWriter &writer) const
Static Private Attributes
TypeHandle	_type_handle

---

Member Enumeration Documentation

enum FltGeometry::BillboardType

Enumeration values: BT_none  BT_fixed  BT_axial  BT_point  Definition at line 55 of file fltGeometry.h.

enum FltGeometry::DrawType

Enumeration values: DT_solid_backface  DT_solid_no_backface  DT_wireframe  DT_wireframe_close  DT_wireframe_highlight  DT_omni_light  DT_uni_light  DT_bi_light  Definition at line 44 of file fltGeometry.h.

enum FltGeometry::Flags

Enumeration values: F_terrain  F_no_color  F_no_alt_color  F_packed_color  F_terrain_footprint  F_hidden  Definition at line 62 of file fltGeometry.h.

enum FltGeometry::LightMode

Enumeration values: LM_face_no_normal  LM_vertex_no_normal  LM_face_with_normal  LM_vertex_with_normal  Definition at line 71 of file fltGeometry.h.

---

Constructor & Destructor Documentation

FltGeometry::FltGeometry (  FltHeader *  header  )

Definition at line 33 of file fltGeometry.cxx. References _alt_color_index, _alt_color_name_index, _billboard_type, _color_index, _color_name_index, _detail_texture_index, _dfad_feature_id, _dfad_material_code, _draw_type, _flags, _ir_color, _ir_material_code, _light_mode, _line_style_index, _lod_generation_control, _material_index, _relative_priority, _texture_index, _texture_mapping_index, _texwhite, _transparency, BT_none, DT_solid_backface, and LM_face_no_normal.

---

Member Function Documentation

bool FltGeometry::build_record (  FltRecordWriter &  writer  )  const [protected, virtual]

Reimplemented from FltBeadID. Reimplemented in FltFace, and FltMesh. Definition at line 224 of file fltGeometry.cxx. References _alt_color_index, _alt_color_name_index, _alt_packed_color, _billboard_type, _color_index, _color_name_index, _detail_texture_index, _dfad_feature_id, _dfad_material_code, _draw_type, _flags, FltRecord::_header, _ir_color, _ir_material_code, _light_mode, _line_style_index, _lod_generation_control, _material_index, _packed_color, _relative_priority, _texture_index, _texture_mapping_index, _texwhite, _transparency, Datagram::add_be_int16(), Datagram::add_be_int32(), Datagram::add_be_uint16(), Datagram::add_be_uint32(), Datagram::add_int8(), Datagram::add_uint8(), FltPackedColor::build_record(), FltHeader::get_flt_version(), Datagram::pad_bytes(), and writer(). Referenced by FltMesh::build_record(), and FltFace::build_record().

bool FltGeometry::extract_record (  FltRecordReader &  reader  )  [protected, virtual]

Reimplemented from FltBeadID. Reimplemented in FltFace, and FltMesh. Definition at line 170 of file fltGeometry.cxx. References _alt_color_index, _alt_color_name_index, _alt_packed_color, _billboard_type, _color_index, _color_name_index, _detail_texture_index, _dfad_feature_id, _dfad_material_code, _draw_type, _flags, FltRecord::_header, _ir_color, _ir_material_code, _light_mode, _line_style_index, _lod_generation_control, _material_index, _packed_color, _relative_priority, _texture_index, _texture_mapping_index, _texwhite, _transparency, FltPackedColor::extract_record(), DatagramIterator::get_be_int16(), DatagramIterator::get_be_int32(), DatagramIterator::get_be_uint16(), DatagramIterator::get_be_uint32(), FltHeader::get_flt_version(), DatagramIterator::get_int8(), DatagramIterator::get_uint8(), reader(), and DatagramIterator::skip_bytes(). Referenced by FltMesh::extract_record(), and FltFace::extract_record().

virtual TypeHandle FltGeometry::force_init_type (  void   )  [inline, virtual]

Reimplemented from FltBeadID. Reimplemented in FltFace, and FltMesh. Definition at line 126 of file fltGeometry.h. References get_class_type(), and init_type().

Colorf FltGeometry::get_alt_color (   )  const

Definition at line 139 of file fltGeometry.cxx. References _alt_color_index, _alt_packed_color, _flags, FltRecord::_header, _transparency, Colorf, F_packed_color, FltHeader::get_color(), has_alt_color(), and nassertr.

RGBColorf FltGeometry::get_alt_rgb (   )  const

Definition at line 154 of file fltGeometry.cxx. References _alt_color_index, _alt_packed_color, _flags, FltRecord::_header, F_packed_color, FltHeader::get_rgb(), has_alt_color(), nassertr, and RGBColorf.

TypeHandle FltGeometry::get_class_type (  void   )  [inline, static]

Reimplemented from FltBeadID. Reimplemented in FltFace, and FltMesh. Definition at line 127 of file fltGeometry.h. References _type_handle. Referenced by force_init_type(), get_type(), FltMesh::init_type(), and FltFace::init_type().

Colorf FltGeometry::get_color (   )  const

Definition at line 69 of file fltGeometry.cxx. References FltMaterial::_alpha, _color_index, FltMaterial::_diffuse, _flags, FltRecord::_header, _packed_color, _texwhite, _transparency, alpha, Colorf, F_packed_color, get_material(), FltHeader::get_rgb(), has_color(), has_material(), has_texture(), and RGBColorf. Referenced by FltToEggConverter::setup_geometry().

INLINE FltMaterial* FltGeometry::get_material (   )  const

Referenced by get_color(), and get_rgb().

RGBColorf FltGeometry::get_rgb (   )  const

Definition at line 104 of file fltGeometry.cxx. References _color_index, FltMaterial::_diffuse, _flags, FltRecord::_header, _packed_color, _texwhite, F_packed_color, get_material(), FltHeader::get_rgb(), has_color(), has_material(), has_texture(), and RGBColorf.

INLINE FltTexture* FltGeometry::get_texture (   )  const

Referenced by FltCopy::scan_flt(), and FltToEggConverter::setup_geometry().

virtual TypeHandle FltGeometry::get_type (  void   )  const [inline, virtual]

Reimplemented from FltBeadID. Reimplemented in FltFace, and FltMesh. Definition at line 123 of file fltGeometry.h. References get_class_type().

bool FltGeometry::has_alt_color (   )  const

Definition at line 127 of file fltGeometry.cxx. References _flags, and F_no_alt_color. Referenced by get_alt_color(), and get_alt_rgb().

INLINE bool FltGeometry::has_color (   )  const

Referenced by get_color(), get_rgb(), and FltToEggConverter::setup_geometry().

INLINE bool FltGeometry::has_material (   )  const

Referenced by get_color(), and get_rgb().

INLINE bool FltGeometry::has_texture (   )  const

Referenced by get_color(), get_rgb(), FltCopy::scan_flt(), and FltToEggConverter::setup_geometry().

void FltGeometry::init_type (  void   )  [inline, static]

Reimplemented from FltBeadID. Reimplemented in FltFace, and FltMesh. Definition at line 130 of file fltGeometry.h. References _type_handle, FltBeadID::get_class_type(), FltBeadID::init_type(), and register_type(). Referenced by force_init_type(), init_libflt(), FltMesh::init_type(), and FltFace::init_type().

---

Member Data Documentation

int FltGeometry::_alt_color_index

Definition at line 100 of file fltGeometry.h. Referenced by build_record(), extract_record(), FltGeometry(), get_alt_color(), and get_alt_rgb().

int FltGeometry::_alt_color_name_index

Definition at line 83 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

FltPackedColor FltGeometry::_alt_packed_color

Definition at line 97 of file fltGeometry.h. Referenced by build_record(), extract_record(), get_alt_color(), and get_alt_rgb().

BillboardType FltGeometry::_billboard_type

Definition at line 84 of file fltGeometry.h. Referenced by build_record(), extract_record(), FltGeometry(), and FltToEggConverter::setup_geometry().

int FltGeometry::_color_index

Definition at line 99 of file fltGeometry.h. Referenced by build_record(), extract_record(), FltGeometry(), get_color(), and get_rgb().

int FltGeometry::_color_name_index

Definition at line 82 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

int FltGeometry::_detail_texture_index

Definition at line 85 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

int FltGeometry::_dfad_feature_id

Definition at line 89 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

int FltGeometry::_dfad_material_code

Definition at line 88 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

DrawType FltGeometry::_draw_type

Definition at line 80 of file fltGeometry.h. Referenced by build_record(), FltToEggConverter::convert_face(), extract_record(), FltGeometry(), and FltToEggConverter::setup_geometry().

unsigned int FltGeometry::_flags

Definition at line 94 of file fltGeometry.h. Referenced by build_record(), extract_record(), FltGeometry(), get_alt_color(), get_alt_rgb(), get_color(), get_rgb(), and has_alt_color().

int FltGeometry::_ir_color

Definition at line 78 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

int FltGeometry::_ir_material_code

Definition at line 90 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

LightMode FltGeometry::_light_mode

Definition at line 95 of file fltGeometry.h. Referenced by build_record(), extract_record(), FltGeometry(), and FltToEggConverter::setup_geometry().

int FltGeometry::_line_style_index

Definition at line 93 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

int FltGeometry::_lod_generation_control

Definition at line 92 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

int FltGeometry::_material_index

Definition at line 87 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

FltPackedColor FltGeometry::_packed_color

Definition at line 96 of file fltGeometry.h. Referenced by build_record(), extract_record(), get_color(), and get_rgb().

int FltGeometry::_relative_priority

Definition at line 79 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

int FltGeometry::_texture_index

Definition at line 86 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

int FltGeometry::_texture_mapping_index

Definition at line 98 of file fltGeometry.h. Referenced by build_record(), extract_record(), and FltGeometry().

bool FltGeometry::_texwhite

Definition at line 81 of file fltGeometry.h. Referenced by build_record(), extract_record(), FltGeometry(), get_color(), get_rgb(), and FltToEggConverter::setup_geometry().

int FltGeometry::_transparency

Definition at line 91 of file fltGeometry.h. Referenced by build_record(), extract_record(), FltGeometry(), get_alt_color(), and get_color().

TypeHandle FltGeometry::_type_handle [static, private]

Reimplemented from FltBeadID. Reimplemented in FltFace, and FltMesh. Definition at line 25 of file fltGeometry.cxx. Referenced by get_class_type(), and init_type().

---

The documentation for this class was generated from the following files:

• fltGeometry.h
• fltGeometry.cxx

---
